VSL 12-9 PE BL

Part no.: 10.07.09.00050

Compressed-air hose

Industries: Universal

Outside diameter D	12 (mm)
Internal diameter d	9 (mm)
Length max.	100 (m)
Material hose	PE
Pressure range (operating pressure) [bar]	bar
Operating temperature	°C
Color	blue

Product information

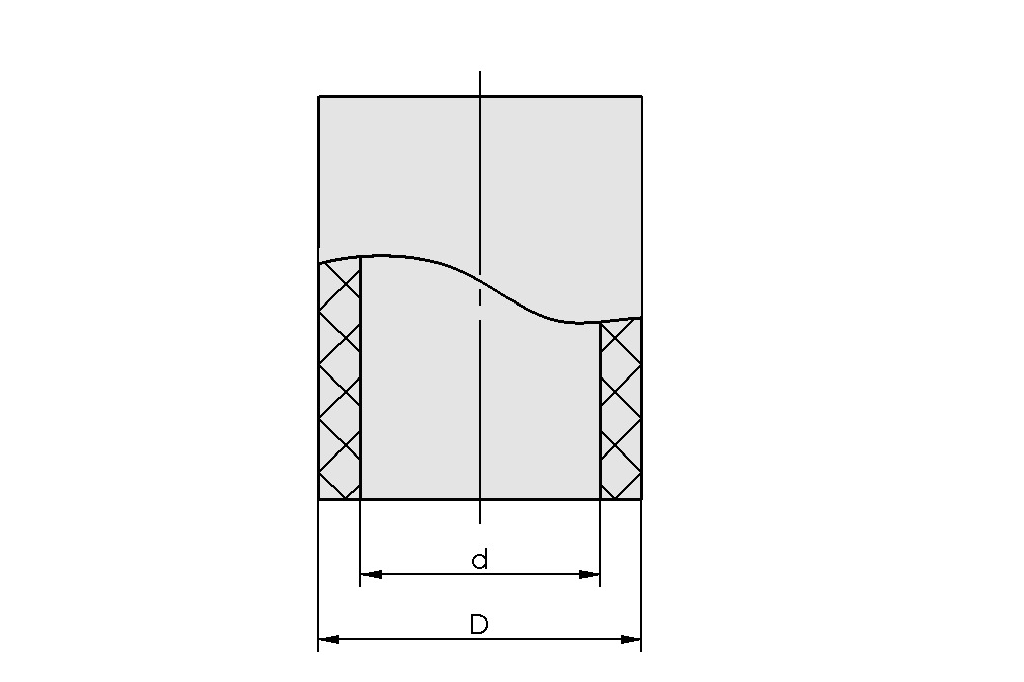

Design Data

Design image

Attribute	Value
d	9 mm
D	12 mm

Technical Data

Attribute	Value
Design hose type	12-9
Pressure range (operating pressure) [bar]	bar
Operating temperature	°C
Length max.	100 m
Weight / Meter	457 g/m
Weight / Meter	0.46 kg/m
Material hose	PE
Product family	VSL

Note: Operating pressure: In reference to media and ambient temperature of + 20 °C Min. bending radius: Referred to the inner side of the hose bend in a static state Max. length: Please indicate the tube length when placing the order!
