VSL 48-38 PU-DS-AS TR

Name: VSL 48-38 PU-DS-AS TR
SKU: 10.07.09.00031

Part no.: 10.07.09.00031

Hose for vacuum and compressed-air systems

Industries: Universal

Outside diameter D	48 (mm)
Internal diameter d	38 (mm)
Length max.	20 (m)
Material hose	PU, wire spiral, antistatic
Bending radius min.	29 (mm)
Pressure range (operating pressure) [bar]	-1.00 ... 3.12 bar
Operating temperature	-40 ... 90 °C
Color	Transparent

Product information

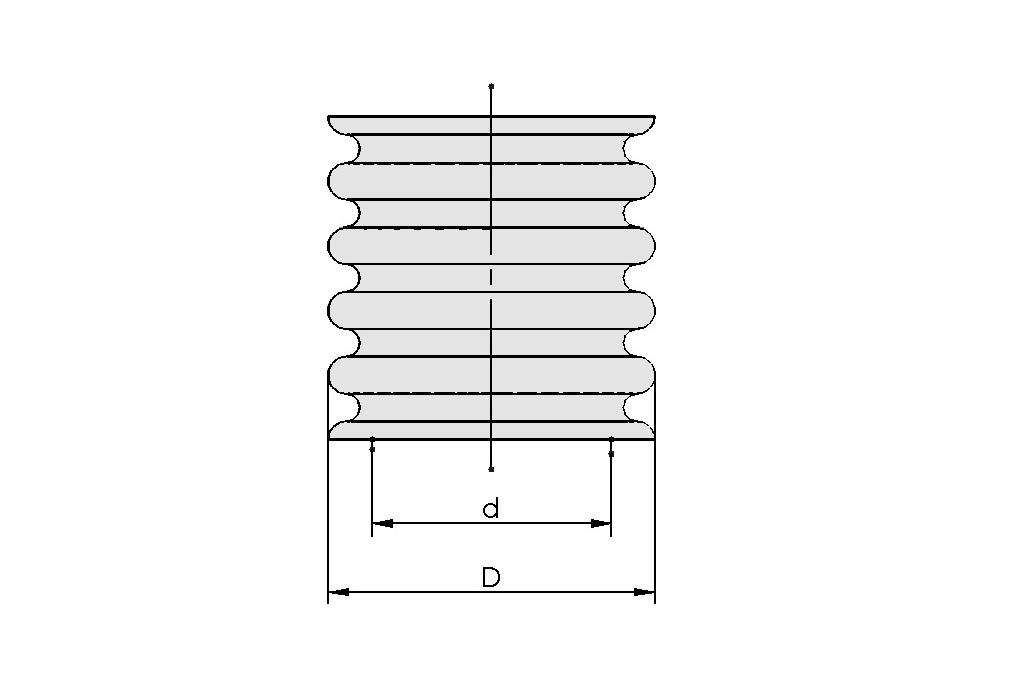

Design Data

Attribute	Value
d	38 mm
D	48 mm

Technical Data

Attribute	Value
Design hose type	48-38
Pressure range (operating pressure) [bar]	-1.00 ... 3.12 bar
Operating temperature	-40 ... 90 °C
Bending radius min.	29 mm
Length max.	20 m
Weight / Meter	520 g/m
Weight / Meter	0.52 kg/m
Material hose	PU, wire spiral, antistatic
Product family	VSL

Note: Operating pressure: In reference to media and ambient temperature of + 20 °C Min. bending radius: Referred to the inner side of the hose bend in a static state Max. length: Please indicate the tube length when placing the order!
