SSB 10-16 ST-VZ10.07.10.00001Hose clamp for securing smooth
hoses
| Clamping range [mm] | 10.0 ... 16.0 mm |
| Material | Steel |
| Surface | galvanised |
VSL 15-9 PVC-G KL-TR
Part no.: 10.07.09.00005
Compressed-air hose
Industries: Universal
| Outside diameter D | 15 (mm) |
| Internal diameter d | 9 (mm) |
| Length max. | 50 (m) |
| Material hose | PVC with tissue |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C |
| Color | Clear-transparent |

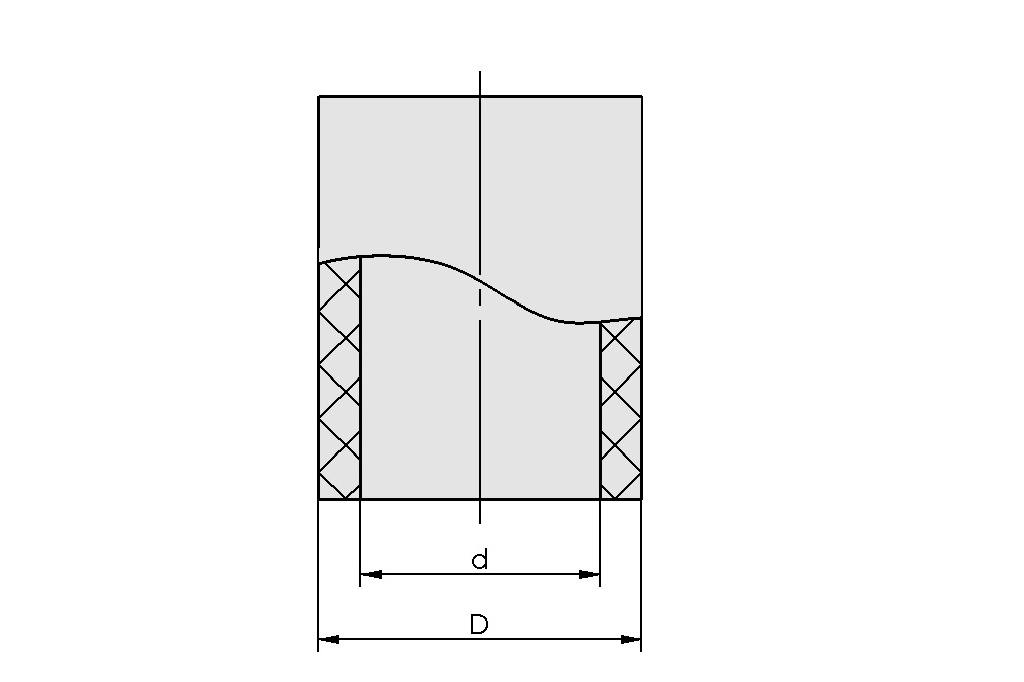

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 9 mm |
| D | 15 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Design hose type | 15-9 |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | °C |
| Length max. | 50 m |
| Weight / Meter | 144 g/m |
| Weight / Meter | 0.14 kg/m |
| Material hose | PVC with tissue |
| Product family | VSL |
Documentation
Documentation
Accessories
ST G1/2-AG 9 MS-V10.08.03.00161Hose sleeve
| Thread G1 | G1/2"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 6.1 (mm) |
| Nominal diameter dn | 7.5 (mm) |
ST G1/4-AG 9 MS-V10.08.03.00157Hose sleeve
| Thread G1 | G1/4"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 7.5 (mm) |
ST G1/8-AG 9 MS-V10.08.03.00155Hose sleeve
| Thread G1 | G1/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 5 (mm) |
| Nominal diameter dn | 4 (mm) |
ST G3/8-AG 9 MS-V10.08.03.00159Hose sleeve
| Thread G1 | G3/8"-M |
| Hose inner diameter (recom.) d | 9 (mm) |
| Material | Brass |
| Surface | nickel plated |
| Length L | 6 (mm) |
| Nominal diameter dn | 7.4 (mm) |
