SSB 40-60 ST-VZ
Part no.: 10.07.10.00005
Hose clamp for securing smooth hoses
Industries: Universal
| Clamping range [mm] | 40.0 ... 60.0 mm |
| Material | Steel |
| Surface | galvanised |

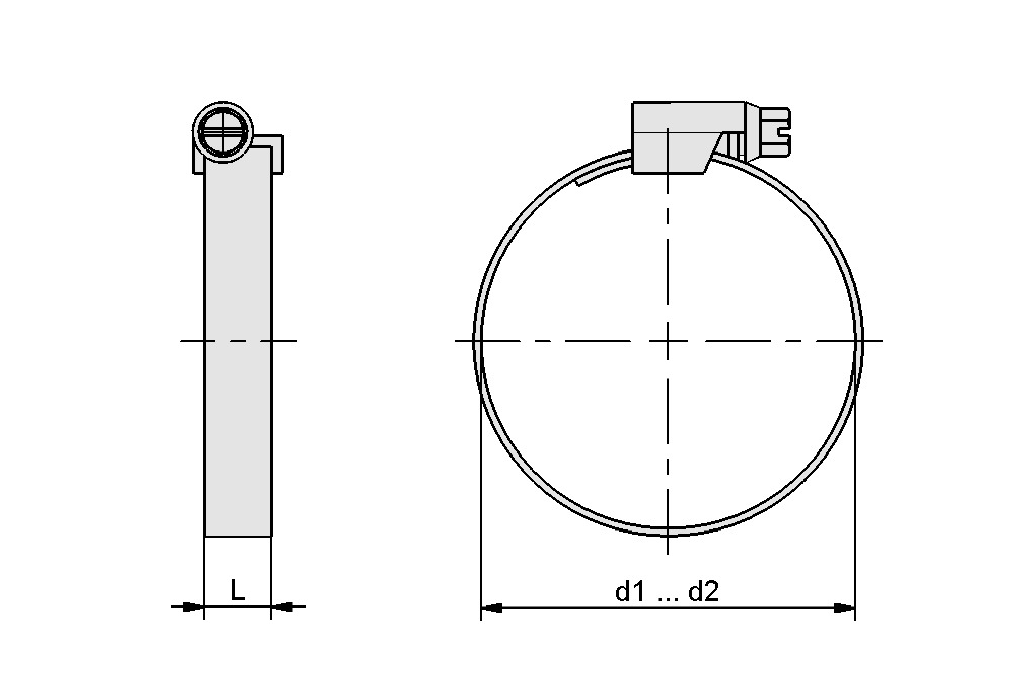

Design Data
Design Data
| Attribute | Value |
|---|---|
| d1 | 40 mm |
| d2 | 60 mm |
| L | 9 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Clamping range [mm] | 40.0 ... 60.0 mm |
| Material | Steel |
| Weight | 25 g |
| Product family | SSB / SSD |
