Innospann Steel-Plate ISST

Hole grid measure 75 mm and 150 mm

Can be retrofitted on all common machine types (flat, grid and console tables)

Two different valve distances allow free positioning of Mono-Bases and Quad-Bases

Lasered grid as orientation aid for positioning the suction cup

Flexible use and short set-up times thanks to sealing magnets for uncovered vacuum openings

Design

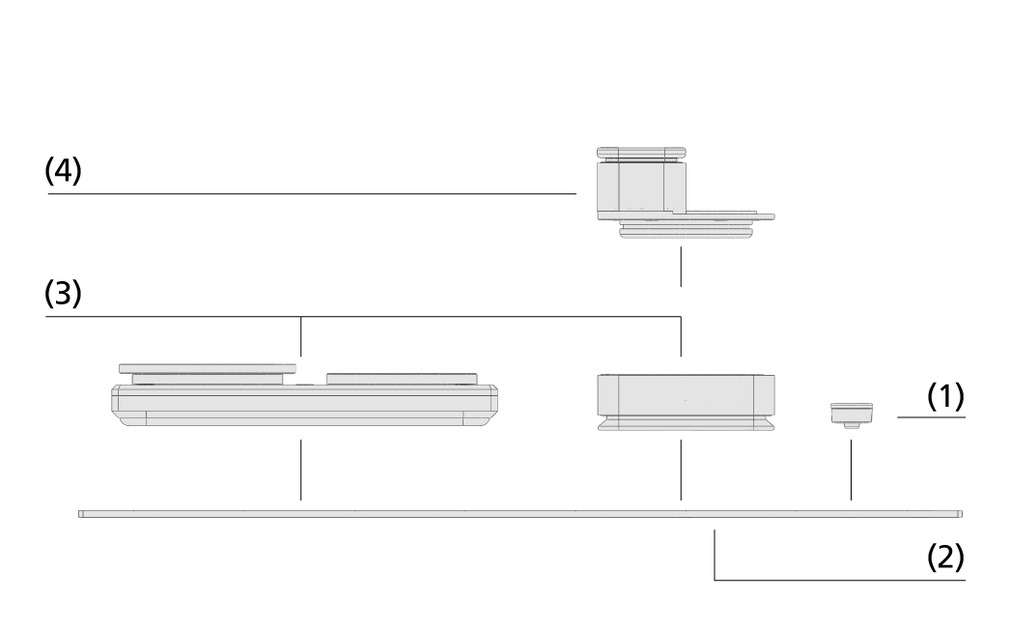

  • Unused vacuum openings can be closed with sealing magnets (1)
  • Innospann Steel-Plate (2) made from high-quality stainless or galvanized steel with integrated vacuum openings
  • Suction cup mountings (3): Mono-Base or Quad-Base
  • Suction cups (4) in various shapes
Ordering information

Product code

Similar to a part number, the product code is used to uniquely identify product configurations at Schmalz. The product code can be found on the product label or on the quotation or order. Do you have questions about your product or would you like to order a configuration again? Then please have this key ready when you contact Schmalz.

ISST
MS
variabel
75
Abbreviated Designation
Code Type
ISST Innospann Steel-Plate
Version
Code Type
MS Sealing magnet
TVR Touch ball valve
Dimensions
Code LxBxH in mm
variabel Variable
Valve spacing
Code Valve spacing in mm
75...150 75 and 150

Ordering information

The Steel-Plate ISST is delivered assembled. The product consists of:

  •  Stainless steel plate or galvanized steel made to measure with hole pattern and laser grid

The matching suction cups and suction cup holders can be found at Innospann Clamping Equipment ISCUP / ISMB / ISQB.

The magnetic plugs are not included in the scope of delivery and must be purchased separately.

Ordering data

Type Dimensions LxW [mm] Valve spacing [mm] Part no.
ISST-MS for Mono-Base Variable Approx. 75 On request
ISST-TVR for Mono-Base Variable Approx. 75 On request
ISST-MS for Quad-Base Variable Approx. 150 On request
ISST-TVR for Quad-Base Variable Approx. 150 On request
Technical Data
  • Steel-Plate with vacuum openings
  • For flexible positioning of clamping equipment from the Innospann modular system
Documentation

The matching documentation for this product is available in this section.

DocumentsLanguage
English
