ISCUP Cup 1 80x80x3010.01.15.00003Suction cup for Innospann
| Dimension (LxW) | 80 x 80 |
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Height H | 30 (mm) |
Part no.: 10.01.15.00078

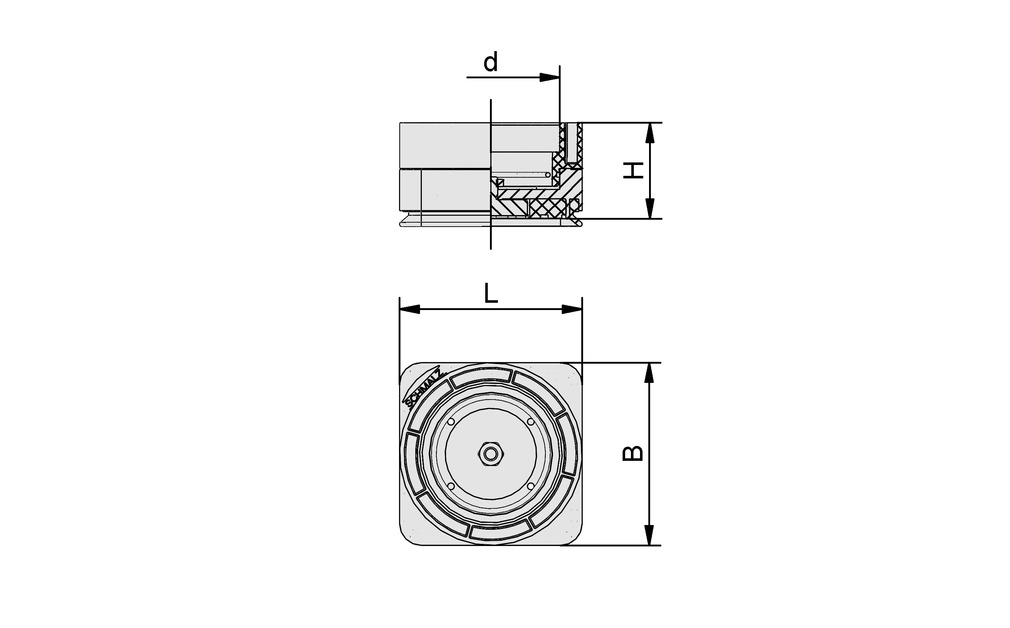

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 80 mm |
| d | 60 mm |
| H | 42 mm |
| L | 80 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 0.19 kg |
Documentation
Documentation
Accessories
ISCUP Cup 2 80x40x3010.01.15.00004Suction cup for Innospann
| Dimension (LxW) | 80 x 40 |
| Length L | 80 (mm) |
| Width B | 40 (mm) |
| Height H | 30 (mm) |
ISCUP Cup 3 80x28x3010.01.15.00005Suction cup for Innospann
| Dimension (LxW) | 80 x 28 |
| Length L | 80 (mm) |
| Width B | 28 (mm) |
| Height H | 30 (mm) |
Product recommendations
Accessories and Spare Parts
- Suction cups, friction plates, sealing gaskets
- Spacer rings, stops and magnets
Innospann Steel-Plate ISST
- Steel-Plate with vacuum openings
- For flexible positioning of clamping equipment from the modular Innospann system
