Mechanical Clamps VCMC-R-QUICK
Clamping range 10 mm to 100 mm · With quick adjustment
Triangular clamping disc with tool-free quick adjustment enables shortest setup times
Clamping forces up to 700 N guarantee high holding forces even on narrow workpieces
No additional medium required on the machine, as the clamping device is activated by the operating vacuum of the CNC machining center
Special friction materials on the clamping plate and clamping surface ensure that the workpiece is held securely even with high machining forces
Design
Design

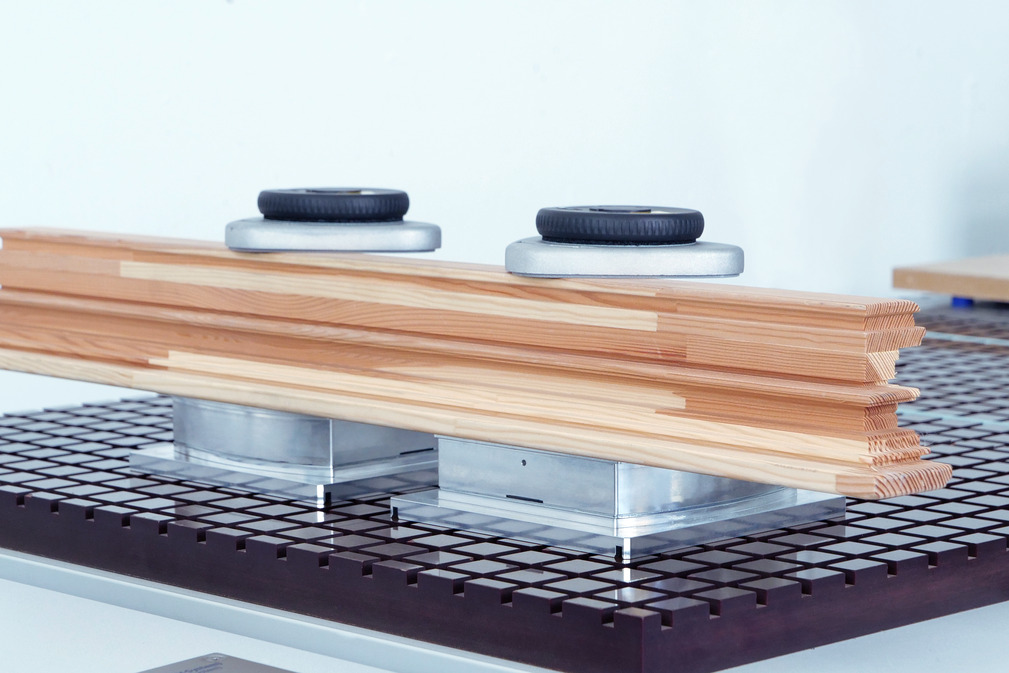

- Triangular clamping disc (1) can be adjusted without tools in clamping height and support surface on the workpiece
- The clamping disc is lowered via the piston by activating the vacuum and clamps the workpiece
- Friction material (2) for optimizing lateral force absorption
- Main body (3) made of aluminum with interface to the grid table with mounting brackets and sealing frame (4)
Technical Data
Technical Data
- Vacuum system for grid tables
- For frames and window profiles
