- NEW

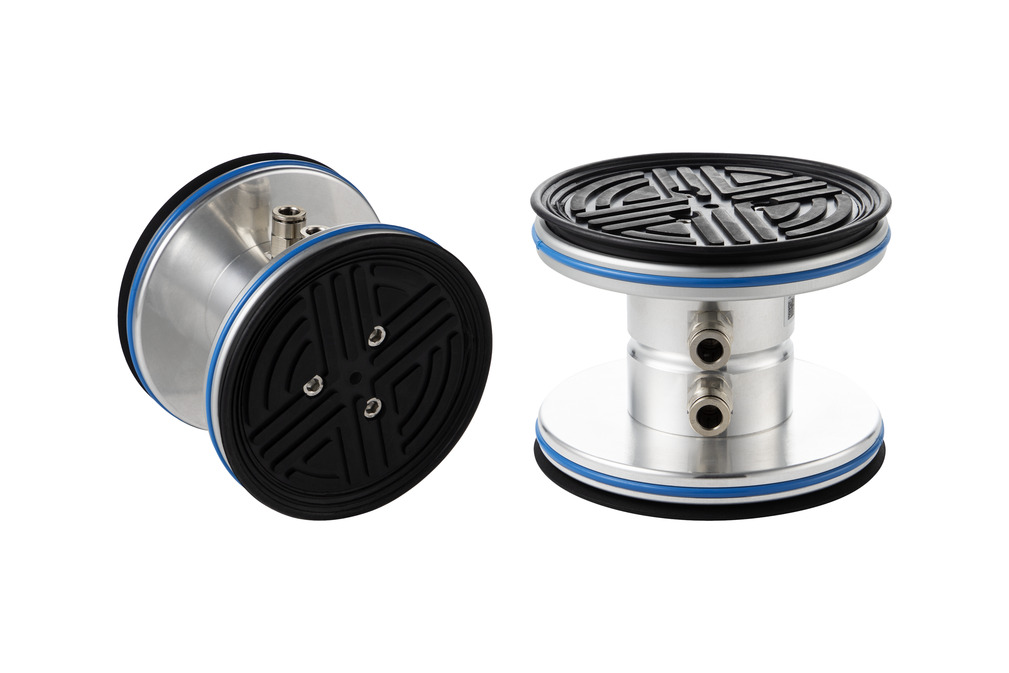

Vacuum Blocks VCBL-GL
Wide selection of suction areas and heights
Calibrated friction pad with high coefficient of friction and multidirectional section ensures the best machining results
Large profile depth enables multiple calibrations on the machine and enables long-term high precision
Sealing ring with multiple sealing lip ensures optimum sealing on glass, even with heavy dirt accumulation
Lengthy service life thanks to replaceable suction plate and sealing as well as robust connectors
Design
Design
- Upper suction plate (1) replaceable with calibrated friction pad and replaceable sealing (2)
- Robust main body (3) with hose connections (4) for vacuum supply
- Bottom suction plate (5) replaceable with calibrated friction pad and replaceable sealing (6)
Technical Data
Technical Data
- With two hose connections for flat tables
- Precise friction pad
- Sealing ring with triple sealing lip for glass
- Replaceable suction plate and sealing ring
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
