Radio Remote Control SRC
Conveniently switch on and off at the operator handle
With the radio remote control SRC, you can conveniently switch the vacuum generator on and off directly at the operator handle.
Vacuum Tube Lifters Jumbo Low-Stack
Ergonomic Pickup of Workpieces From low Positions
Ergonomic picking of workpieces from deep storage areas
Sustained reduction of back pain by maintaining upright posture while handling at low heights
Intuitive and reliable operation - the twist grip slides through the hand during the lifting movement without changing grip
Can be used for a wide range of workpieces and transport containers thanks to the wide range of grippers
The compact design is suitable for reaching into narrow containers
Reduced residual vacuum at the gripper makes it easy to release the workpiece
Together for greater sustainability - with Jumbos in action.
Our innovative vacuum technology combines sustainability with economic success. Thanks to intelligent system optimization, you can save up to 90 % of your energy consumption with the new Eco function, depending on the application. This not only makes a valuable contribution to environmental protection, but also significantly improves your ROI.
Find out more now and discover new ways to lift your vacuum tube lifter to the next level.
Design
Design
- Vacuum generation (1) by electric blower with lift capacity up to 80 kg
- Flexible vacuum supply hose (2)
- Shortened lifting unit (3) with sturdy lift tube and integrated rotary union for continuous rotation of the tube lifter
- Operator handle (4) with lateral twist grip for lifting, lowering and releasing the load and integrated mechanism for adjusting the suspension height without load
- Individually selected vacuum grippers (5) for a wide variety of workpieces
Modular elements
Modular elements
Double vacuum gripper
For cardboard boxes, crates or sheets. The suction cups are continuously adjustable along the beam.
Round vacuum gripper
For film-wrapped goods, raw rubber bales and shrink-wrapped packages.

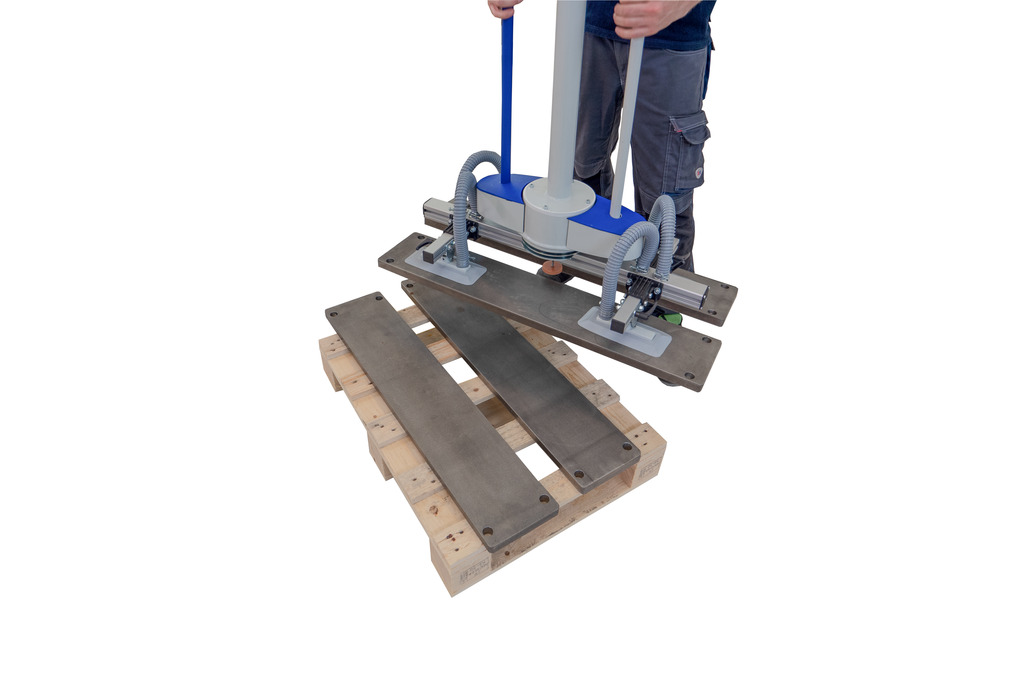

Quadruple vacuum gripper
For large, flat workpieces. The suction cups are longitudinally and transversely adjustable on a continuous basis.

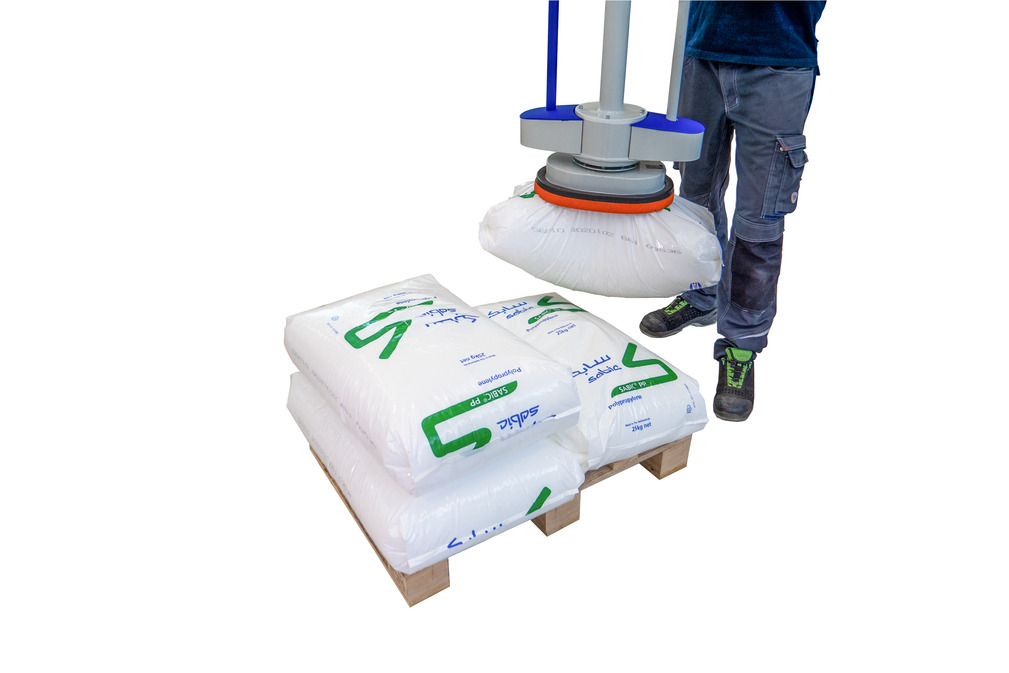

Sack gripper for a wide range of sacks
For paper and plastic bags, raw rubber bales and shrink-wrapped packages.
Product Inquiry
Handling systems for the Chinese market
The product area of handling systems is covered in China by our experienced partner Binar Handling. With this cooperation, we ensure that our high standards for quality, efficiency and service are also met in China.
If you require support or further information, please feel free to contact Binar Handling directly.
Accessories
Eco Functions
Energy savings of up to 90 %
With the new eco functions, available with SRC, the tube lifter switches off automatically. This effectively prevents unnecessary energy consumption during work breaks.

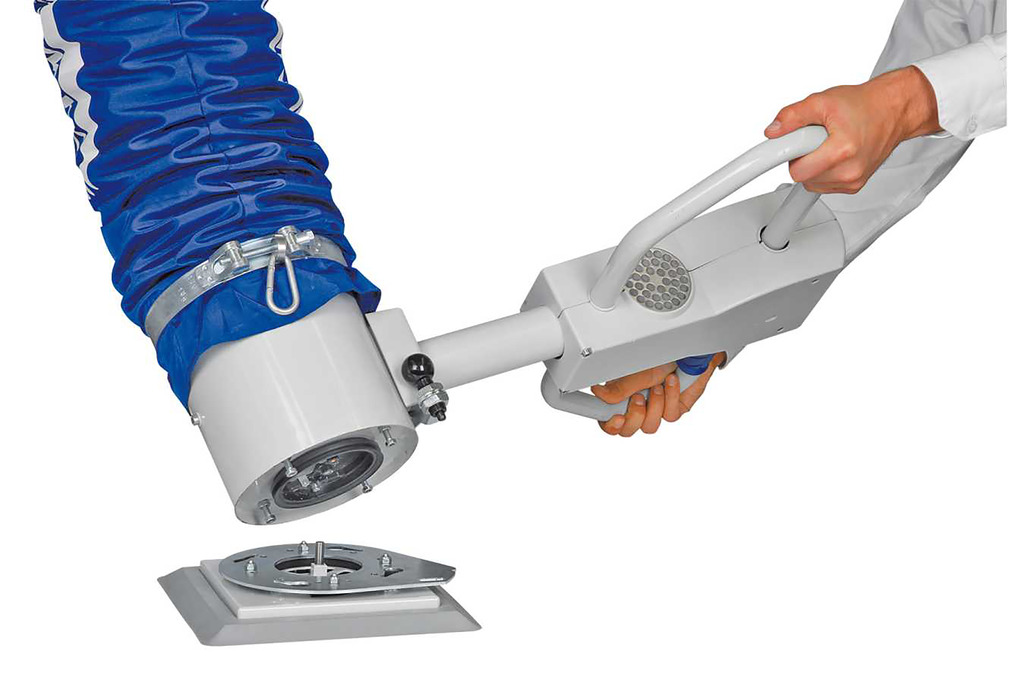

Quick-Change Adapter SWA
Instantly switch vacuum gripper
The quick-change adapter SWA allows you to quickly and easily switch the vacuum gripper on your tube lifter in order to adapt to changing workpieces.
Rotation Unit DE
Venting Unit BEL
Instantly release workpieces
The venting unit BEL allows non-porous workpieces to be released from the vacuum gripper and set down.
Silencer Box SBB
Reduce the sound level
The silencer box SBB reduces the sound level of the vacuum generator to 65 dB(A) and protects it from outside dirt. It can be easily mounted on the optional blower mounting platform.
Dust Filter STF
Protection against dirt
The dust filter STF keeps dirt particles away from the vacuum generator and is always recommended to protect the generator. An optional differential pressure monitor with a signal lamp indicates when the dirty filter has to be changed.

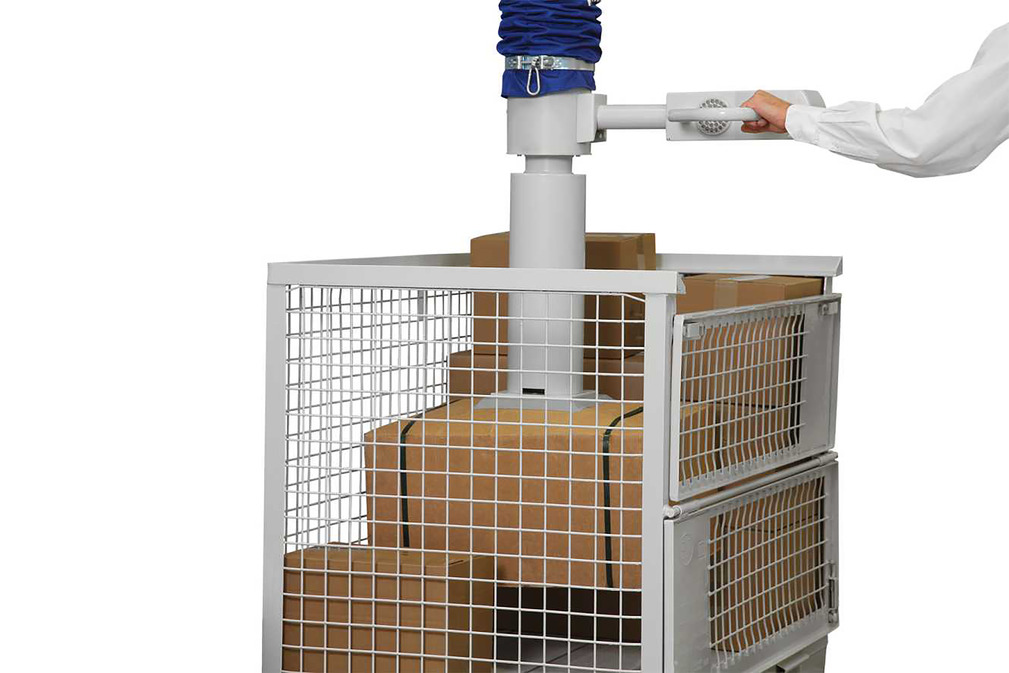

Hose-Cylinder Extension SZV
Reach into deep containers
The hose-cylinder extension SZV enables ergonomic loading and unloading of containers such as lattice boxes.
Motor-Protection Switch MSS
Protection against thermal overload
With the motor-protection switch MSS the vacuum generator can be switched on/off and protected against overcurrent. It can be integrated into the Schmalz crane column without the need for complicated wiring and can be optionally locked.
Protective Tube and Retaining Net
Protection against wear
The protective tube prevents mechanical damage to the lift tube and is easy to clean. The retaining net protects the vacuum grippers and the lift tube when the tube lifter is not in use and allows for space-saving storage.
