Radio remote control
Radio remote control for suction and release of the workpiece
Vacuum Lifting Devices VacuMaster Panel
For transporting sandwich panels and facade elements
For transporting sandwich panels and façade elements
Modular design
Quick extension of the device by attaching extension arms enables flexible use for workpieces of different lengths
Two-circuit vacuum system
Safe lifting of workpieces without additional mechanical securing enables quick and easy lifting and depositing
Special suction plates with friction structure
Enables damage-free handling of various panel types in horizontal and vertical orientation
Load arm with tilt and turn function
Workpieces can be swivelled through 90° and rotated 360° manually
Transport box in Euro pallet size
Easy transportation of the devices to construction sites and quick assembly on site
Handling systems for the Chinese market
The product area of handling systems is covered in China by our experienced partner Binar Handling. With this cooperation, we ensure that our high standards for quality, efficiency and service are also met in China.
If you require support or further information, please feel free to contact Binar Handling directly.

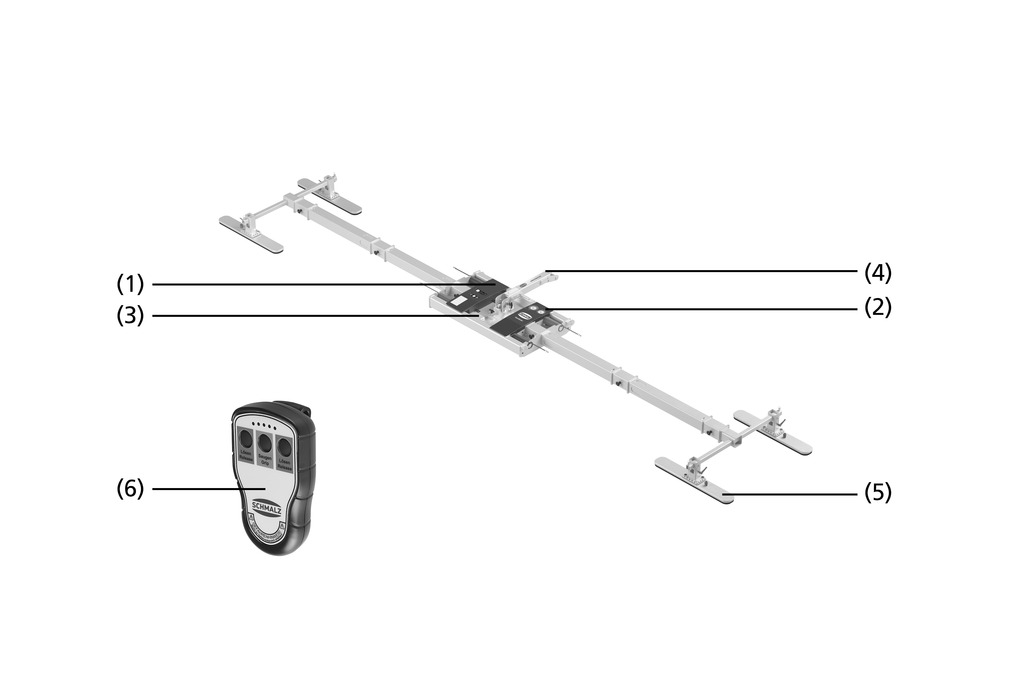

Design
Design
- Basic module (1) with battery-powered vacuum generation in a dual-circuit system
- Gauge (2) for displaying the vacuum in both vacuum circuits
- Charger (3) attached to the basic module for charging the battery
- Load arm (4) for suspending and manually rotating and swiveling the device
- Special suction plates with rubber seal (5) to compensate height differences
Ordering information
Ordering information
Ordering information
The devices are supplied with 4 suction plates for applications up to 400 kg horizontally and 260 kg vertically.
