VEE-FE 25.4x181.5
Part no.: 10.01.36.00128
Flange extension
Industries: Packaging
| Outside diameter D | 25.4 (mm) |
| Length L1 | 181.5 (mm) |
| Extension to | 150 (mm) |

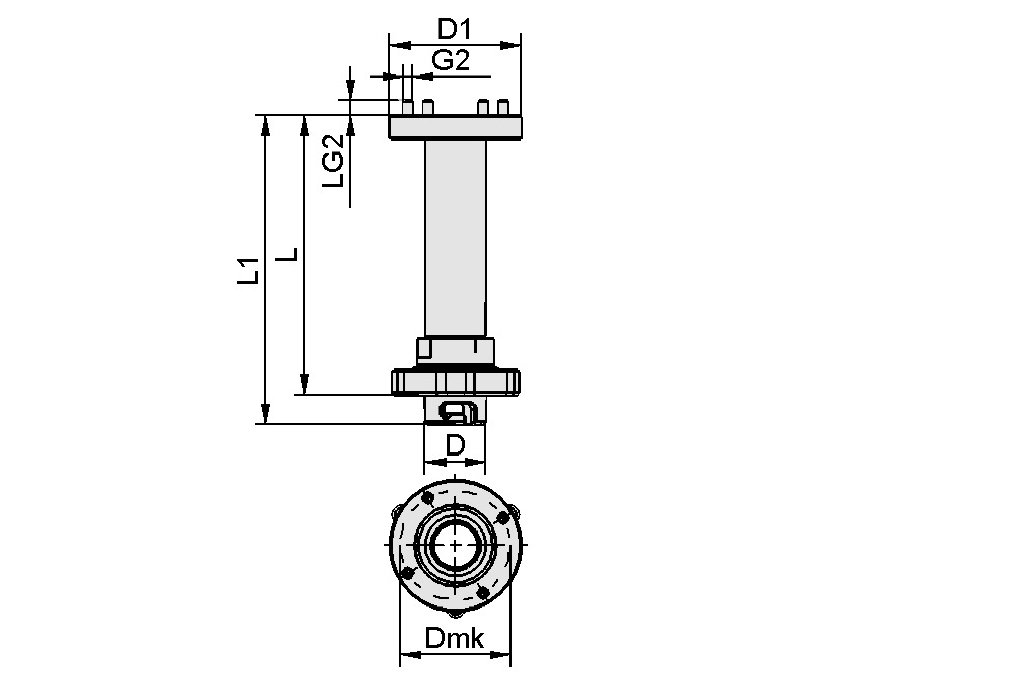

Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 25.4 mm |
| D1 | 55 mm |
| Dmk | 46 mm |
| G2 | M4-M |
| L1 | 181.5 mm |
| L | 168.5 mm |
| LG2 | 6.4 mm |
Documentation
Documentation
Accessories
VEE-RU 55x55 20 FL10.01.36.00090Rotary unit
| Outside diameter D1 | 55 (mm) |
| Length L1 | 55 (mm) |
| Nominal flow rate | 20 (m³/h) |
| Dmk | 46 (mm) |
VEE-RU 55x65 60 FL10.01.36.00065Rotary unit
| Outside diameter D1 | 55 (mm) |
| Length L1 | 65 (mm) |
| Nominal flow rate | 60 (m³/h) |
| Dmk | 46 (mm) |
RFBP 50 50 BA SPB210.01.45.00096Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 50 (mm) |
| Width B | 50 (mm) |
| Connection | Bayonet connection |
| Suction cup type | Bellows suction cups SPB2 |
RFBP 100 58 BA SPB210.01.45.00091Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 100 (mm) |
| Width B | 58 (mm) |
| Connection | Bayonet connection |
| Suction cup type | Bellows suction cups SPB2 |
RFBP 100 58 BA O1010.01.45.00092Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 100 (mm) |
| Width B | 58 (mm) |
| Connection | Bayonet connection |
| Material type | Foam open, height 10 mm |
RFBP 120 120 BA SPB210.01.45.00085Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Connection | Bayonet connection |
| Suction cup type | Bellows suction cups SPB2 |
RFBP 120 120 BA O1010.01.45.00086Large-area vacuum gripping system
in lightweight design RFBP
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Connection | Bayonet connection |
| Material type | Foam open, height 10 mm |
