Name: SCPLc 100 HF G FA NO PNP
SKU: 10.02.02.07603

Size	100
Shape	High flow
Thread G1	G3/8"-F
Thread G2	G1"-F
Degree of evacuation	70 (%)
Suction rate (max.)	1020 (l/min)
Air consumption suction	395 (l/min)
Shape compact ejectors	Flange version with axial exhaust air
Control valve	Normally open
Electrical connection	Male connect M12, 5 pol
Construction vacuum switch	PNP switching

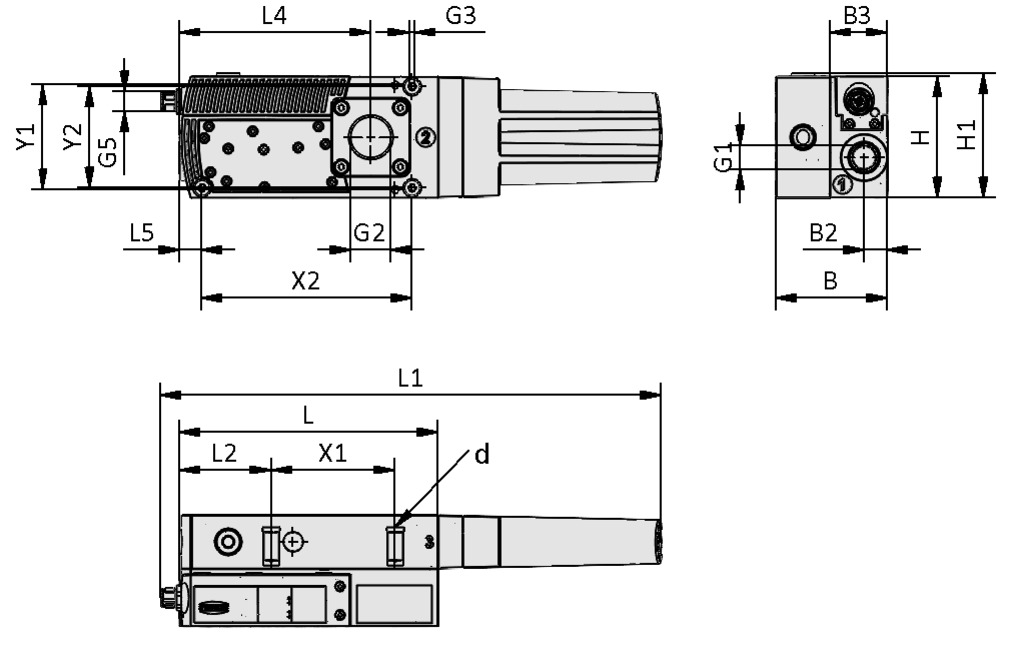

Attribute

Value

97.8 mm

13.8 mm

34 mm

5.5 mm

G3/8"-F

G1"-F

M4-F

M12x1-M

72 mm

74 mm

153.5 mm

297 mm

54.5 mm

113.5 mm

13.5 mm

73.5 mm

124.5 mm

62 mm

60 mm

Attribute

Value

Nozzle size

1.6 mm (three-stage)

Construction vacuum switch

PNP switching

Control valve

Normally open

Electrical connection

Male connect M12, 5 pol

Degree of evacuation

70 %

Suction rate (max.)

1,020 l/min

Suction rate (max.)

61.2 m³/h

Air consumption suction

395 l/min

Air consumption suction

23.7 m³/h

Max. air consumption blow-off

124 l/min

Air consumption blow-off

7.4 m³/h

Max. vacuum

700 mbar

Optimal operating pressure

4.5 bar

Pressure range (operating pressure) [bar]

3.0 ... 6.0 bar

Sound pressure level free

70 dB(A)

Sound pressure level suction

64 dB(A)

Operating temperature

0 ... 55 °C

Protection type IP

IP 54

Weight

1,250 g

Spare parts

EFFICIENT

SEP HV 3 16 22 10.02.01.01397 Multistagenozzle as a cartridge

Shape	High vacuum
Number of stages	3
Nozzle size	1.6 mm
Hole diameter	22 (mm)
Degree of evacuation	90 (%)
Pressure range (operating pressure) [bar]	2.0 ... 6.0 bar
Optimal operating pressure	4 (bar)
Suction rate (max.)	308.8 (l/min)
Air consumption suction	103 (l/min)

Show product

ERS SEP-22 6xRUE-KLAP 10.02.01.01450 Spare part set

Utilization design	Ejector module
Size	22
contains	6x flap

Show product

ERS VENT SCPLb/c 10.02.02.07698 Spare part (pump)

Utilization design

SCPLb/c

Show product

SD 102x71x33 SBPL/SCPL 10.02.01.01585 Silencer for vacuum generators

Utilization design	SBPL/SCPL
Length L	102 (mm)
Width B	71 (mm)
Height H	33 (mm)

Show product

DI-RA 112.5x34.8 NBR-55 SBPL/SCPL 10.02.01.01541 Sealing frame

Utilization design	SBPL/SCPL
Length L	112.5 (mm)
Width B	34.8 (mm)
Height H	2.8 (mm)

Show product

O-RING 10x2.5 NBR-70 10.07.08.00002 O-ring

Material	Nitrile rubber NBR
Internal diameter d	10 (mm)

Show product

SIEB 36.2x0.2 A2 400 0.4/0.22 10.02.02.07119 Screen protects the vacuum system from contamination

Material	Austenitic stainless steel
Outside diameter D	36.2 (mm)
Length L	0.2 (mm)

Show product
