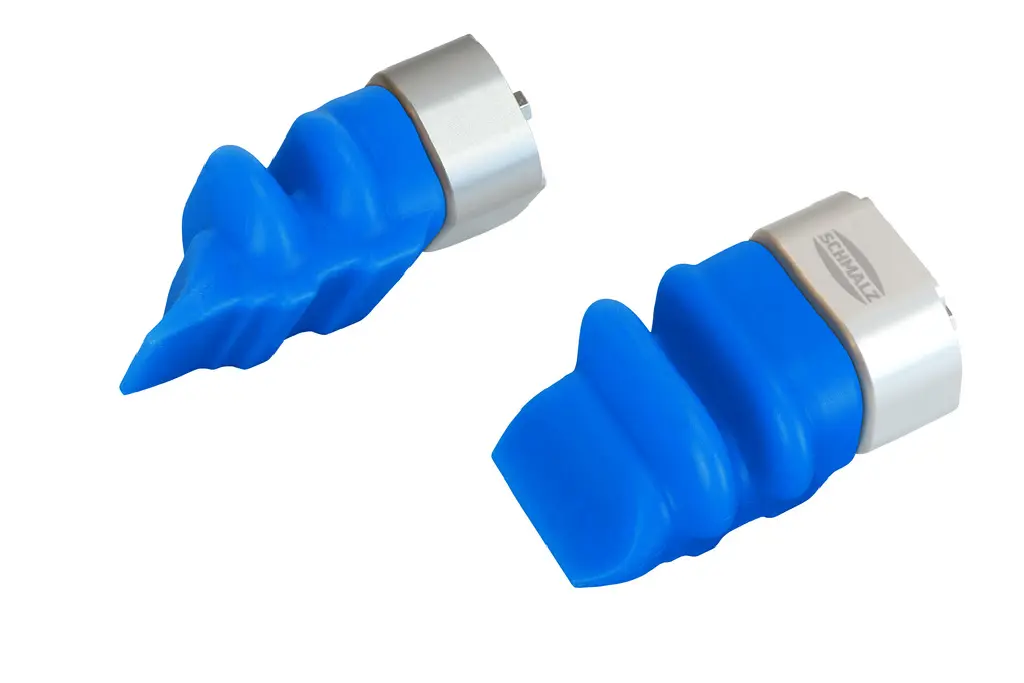

Part no.: 10.13.04.00905
Finger module mGrip
Industries: Food
| Finger element | Module |
| Application | Basic |
| Shape | Compact |
| Number of folds | 2 |
| Length L | 32 (mm) |
| Width B | 45 (mm) |
| Height H | 69.3 (mm) |
| Thread G1 | G1/8"-F |
| Thread length LG1 | 8 (mm) |
| Thread G2 | M4-F |
| Thread length LG2 | 8 (mm) |
| Weight | 88.9 (g) |

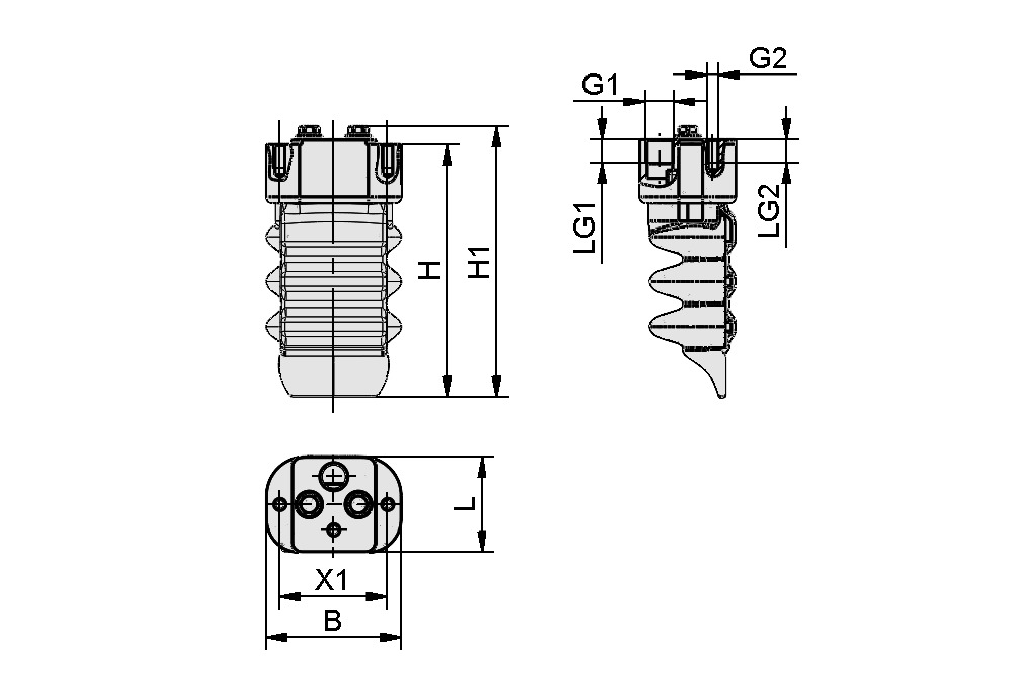

| Attribute | Value |
|---|---|
| B | 45 mm |
| G1 | G1/8"-F |
| G2 | M4-F |
| H | 69.3 mm |
| H1 | 75.4 mm |
| L | 32 mm |
| LG1 | 8 mm |
| LG2 | 8 mm |
| X1 | 36 mm |
| Attribute | Value |
|---|---|
| Material characteristics | for food contact |
| Suction cup material | Silicone SI |
| Nipple material | Aluminum |
| Number of folds | 2 |
| Shape | Compact |
| Finger element | Spare part |
| Number of folds | 2 |
| Shape | Compact |
| Application | Hygenic |
| Weight | 31.6 (g) |
| Utilization design | mGrip Basic |
| Finger element | Component set |
| Utilization design | Finger base |
| Application | Industrial |
| Finger element | Component |
| Utilization design | Finger base |
| Application | Hygenic |
| Standard | ISO 4762 |
| Thread G | M4 |
| Material | Austenitic stainless steel |
| Accessory | Fingerbase Clamp |
| Application | Industrial |
| Internal diameter d | 4.5 (mm) |
| Length L | 34 (mm) |
| Width B | 8.5 (mm) |
| Height H | 6.7 (mm) |
| Weight | 1.11 (g) |
| Thread G | M4 |
| Thread G1 | M4-M |
| Length L | 14 (mm) |
| Material | Austenitic stainless steel |
| Weight | 4.32 (g) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 11.4 (mm) |
| Length L | 16.4 (mm) |
| Thread G1 | G1/8"-M |
| Outer hose diameter | 6 (mm) |
| Material | Plastics |
| Operating temperature | °C |
| Length L | 20.8 (mm) |
