SVS-GE M20x1.5-AG G1/4-IG 30
Part no.: 10.08.03.00180

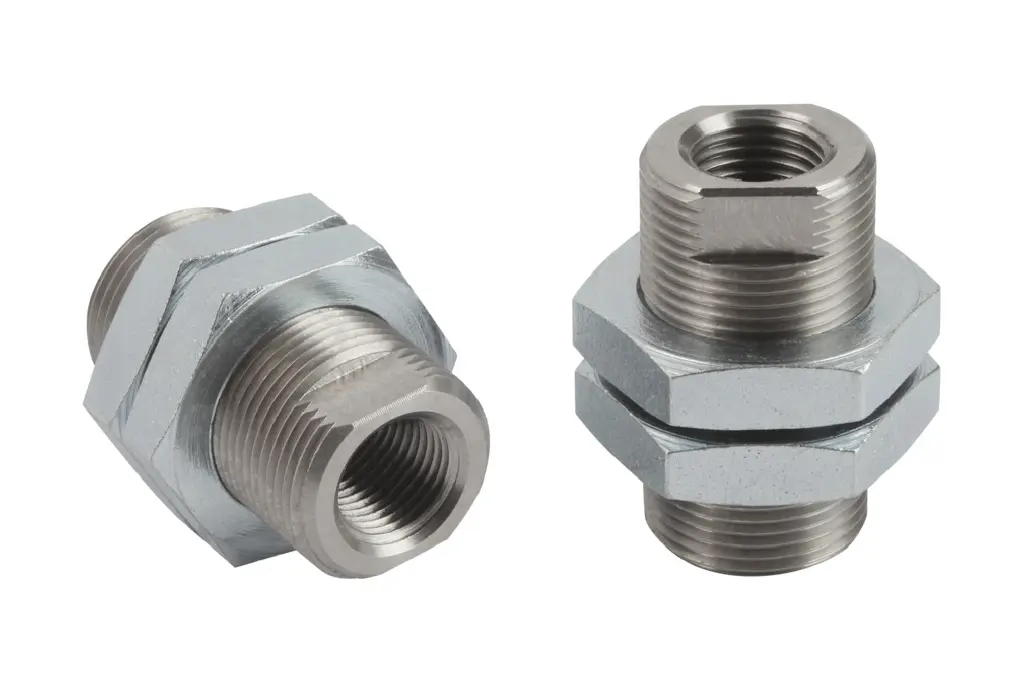

Bulkhead connector, straight with Nuts
Industries: Universal
| Thread G1 | M20x1.5-M |
| Thread G2 | G1/4"-F |
| Length L | 30 (mm) |

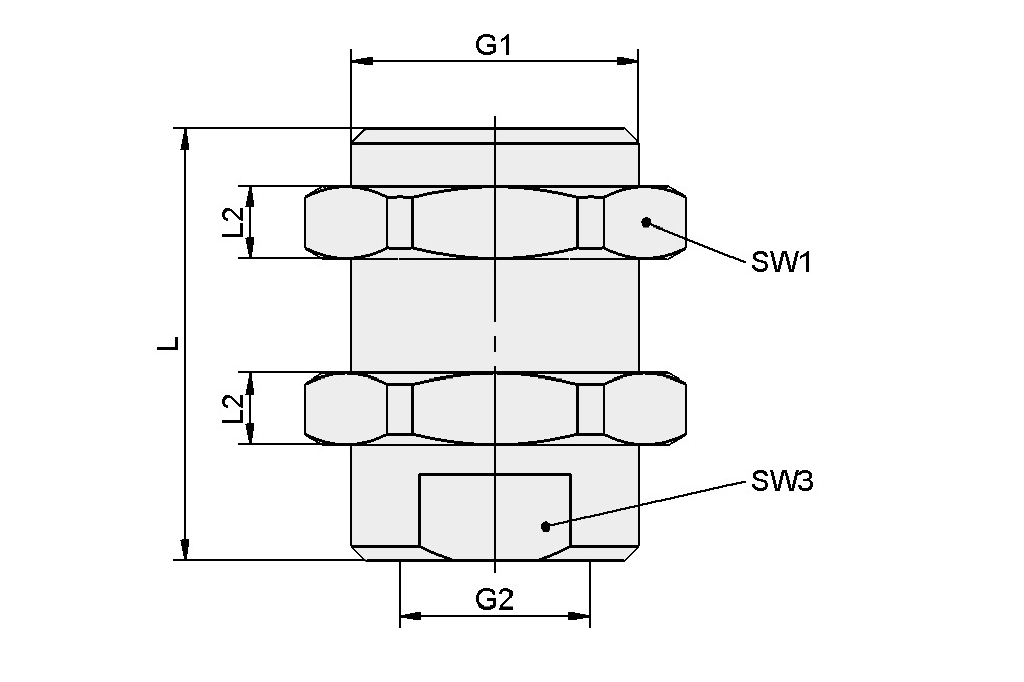

Design Data
Design Data
| Attribute | Value |
|---|---|
| G1 | M20x1.5-M |
| G2 | G1/4"-F |
| L | 30 mm |
| L2 | 5 mm |
| SW1 | 24 mm |
| SW3 | 17 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 63.4 g |
| Product family | SVS-GE |
