HT-SG A5 E 46 RA
Part no.: 10.07.06.00430
Holder for suction cup
Industries: Automotive | Metal
| Connection 1 | Ball head 32 mm |
| Shape | Ejector connection |
| Width B | 46 (mm) |
| Product family | HT-SG-E |
| Suction cup connection | Rectangular adapter |

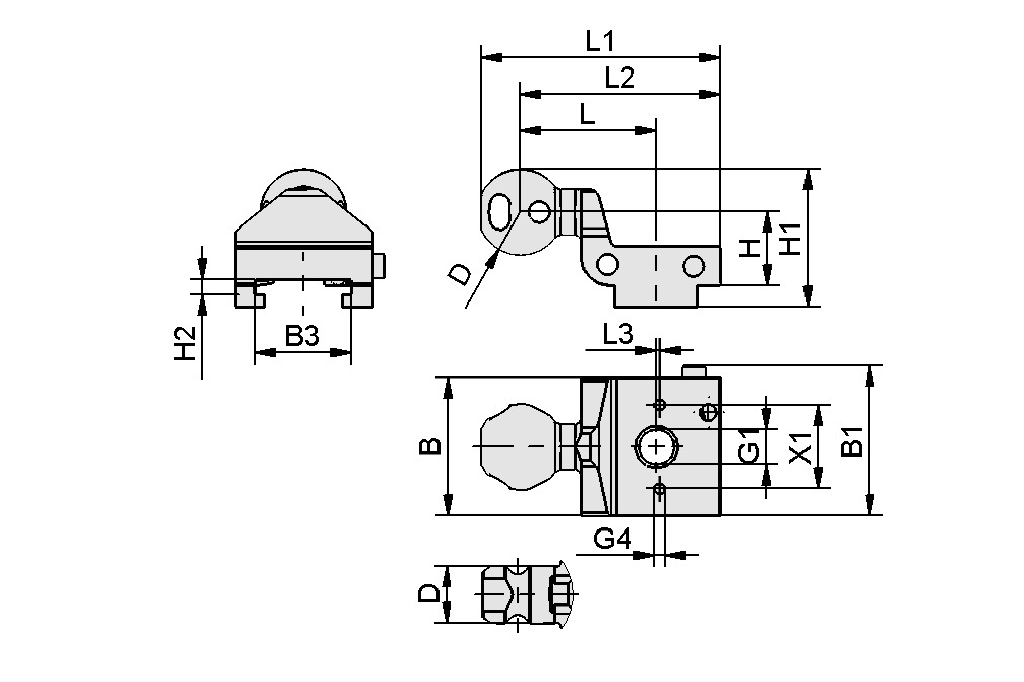

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 46 mm |
| B1 | 50 mm |
| B3 | 32 mm |
| D | 32 mm |
| G1 | G1/4"-F |
| G4 | M4-F |
| H | 24.5 mm |
| H1 | 47.7 mm |
| H2 | 4.8 mm |
| L | 45.5 mm |
| L1 | 82 mm |
| L2 | 67 mm |
| L3 | 1 mm |
| X1 | 28 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 125.3 g |
| Product family | HT-SG-E |
