HT-SG A2 22 G3/8-AG
Part no.: 10.07.06.00450
Holder for suction cup
Industries: Automotive | Metal
| Connection 1 | Bolt with slot Ø19mm |
| Width B | 22 (mm) |
| Product family | HT-SG |
| Suction cup connection | G3/8"-M |

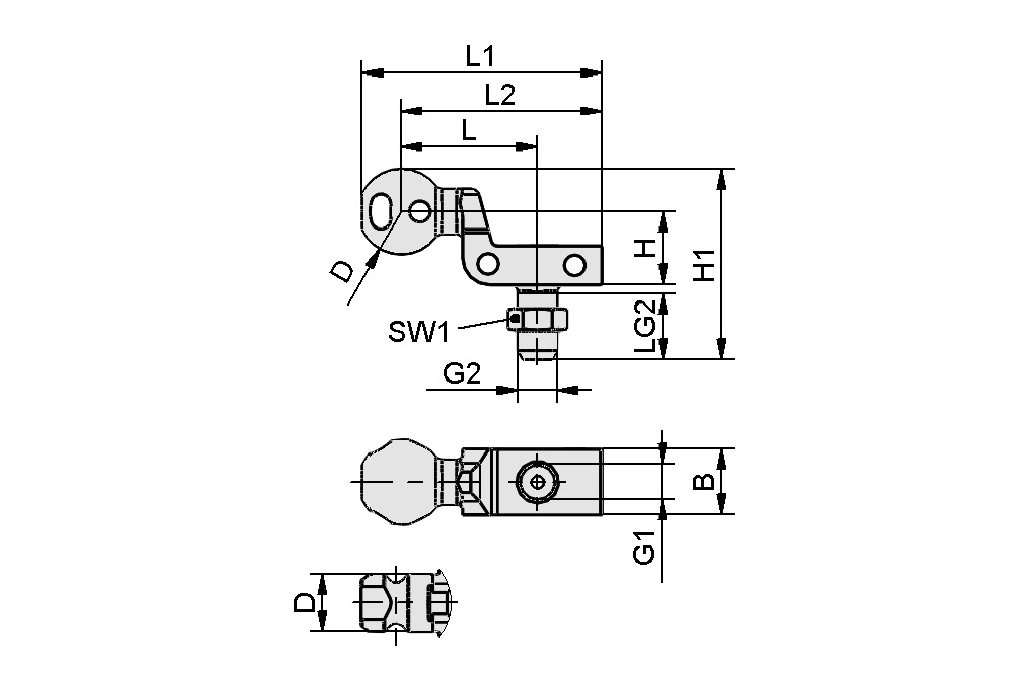

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 22 mm |
| D | 19 mm |
| G1 | G1/4"-F |
| G2 | G3/8"-M |
| H | 24.5 mm |
| H1 | 59 mm |
| L | 39.3 mm |
| L1 | 72.5 mm |
| L2 | 60.8 mm |
| LG2 | 22 mm |
| SW1 | 22 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 69.9 g |
| Product family | HT-SG |
