Vacuum Area Gripping System FXP with Foam SU
Vacuum Area Gripping System FXP with Foam SU
The vacuum area gripping system FXP with foam SU is a flexible system with integrated valve technology to adapt to different workpiece shapes and sizes. A gentle handling and minimum surface pressure during gripping is possible due to a soft and adaptable sealing foam with individual suction cells. There is no relative movement of the foam on the workpiece surface. Therefore, the risk of scratches of the sensitive glass surface is minimized. A special fabric is placed on the suction area of the gripper to avoid contamination of the workpiece surface. The perforated fabric layer with quick-change adhesive film saves costs. The spare parts can be replaced fast and easily at any time.
Applications
- Handling of thin and flexible Display Glass along in the entire display assembly line
- Handling of coated glass with very sensitive coating types
- Use in the production of low-E glasses in the field of building and automotive
- Handling of sensitive workpiece surfaces such as coated or polished surfaces
- Use in clean room applications (e. g. display production)

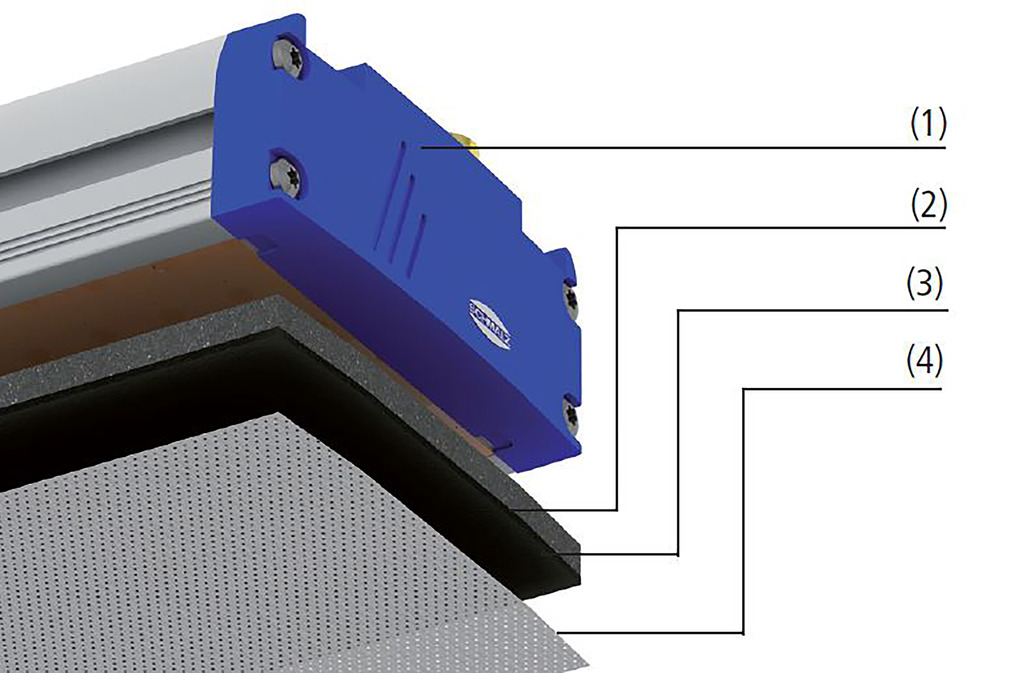

Design
- Base section (1) with intergated vacuum distribution and valve technology - available in different length
- Flexible foam layer (2) for height compensation of the workpieces
- Special silicone free adhesion layer (3) for easy replacement of protection covers
- Replaceable protection cover (4) for the non-marking handling of sensitve workpieces
