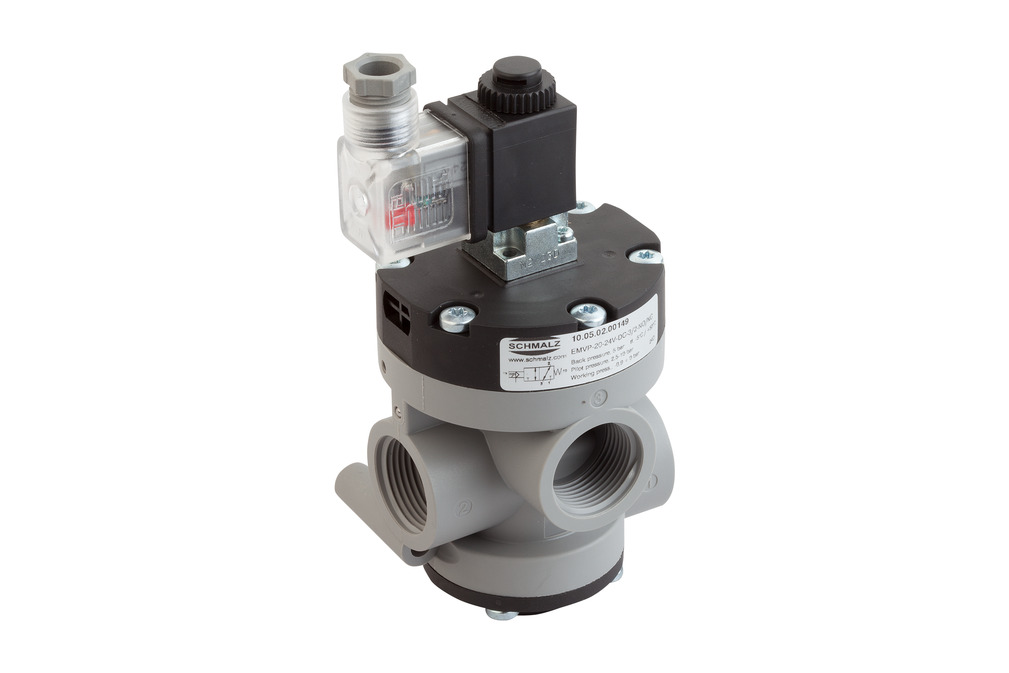

Part no.: 10.05.02.00149
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 75 mm |
| B1 | 77.5 mm |
| B2 | 37.5 mm |
| d | 6.5 mm |
| D | 80 mm |
| G1 | G3/4"-F |
| G2 | G3/4"-F |
| G3 | G3/4"-F |
| G4 | G1/8"-F |
| H | 166.3 mm |
| H1 | 178.3 mm |
| H2 | 22.5 mm |
| L | 75 mm |
| L1 | 115.5 mm |
| X1 | 63 mm |
| Y1 | 32.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 20 mm |
| Control valve | Optional NO / NC |
| Nenndurchfluss bei 0,1 bar | 56 m³/h |
| Nenndurchfluss bei 0,1 bar | 933 l/min |
| Pressure range (operating pressure) [bar] | -0.95 ... 5.00 bar |
| Power consumption DC | 9.8 W |
| Voltage DC | 24 V - DC |
| Closing time | 90 ms |
| Weight | 0.37 kg |
| Product family | EMVP |
Circuit diagram
Circuit diagram
Documentation
Documentation
Spare parts
Accessories
FAS 80x39 G3/4-AG10.05.01.00062Filter with mounting kit
| Outside diameter D | 80 (mm) |
| Length L | 39 (mm) |
| Thread G1 | G3/4"-M |
