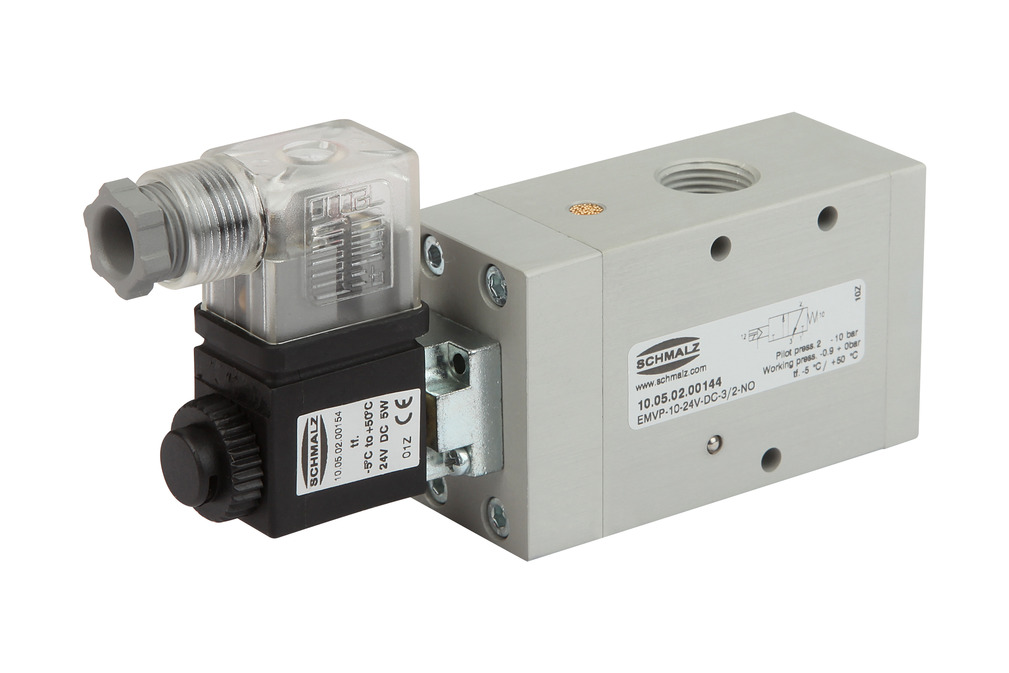

Part no.: 10.05.02.00144

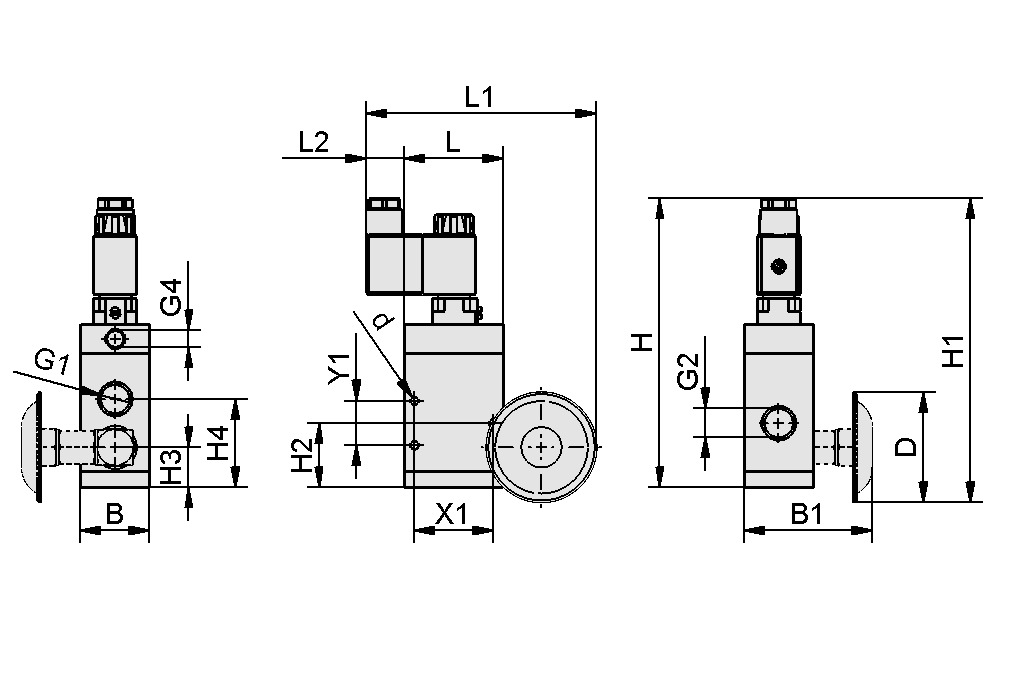

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 35 mm |
| B1 | 67 mm |
| d | 4.3 mm |
| D | 56 mm |
| G1 | G3/8"-F |
| G2 | G3/8"-F |
| G4 | G1/8"-F |
| H | 147 mm |
| H1 | 154.5 mm |
| H2 | 32.8 mm |
| H3 | 20.5 mm |
| H4 | 45 mm |
| L | 50 mm |
| L1 | 117 mm |
| L2 | 19.5 mm |
| X1 | 40 mm |
| Y1 | 22.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 10 mm |
| Control valve | Optional NO / NC |
| Nenndurchfluss bei 0,1 bar | 19.3 m³/h |
| Nenndurchfluss bei 0,1 bar | 322 l/min |
| Pressure range (operating pressure) [bar] | -0.95 ... 5.00 bar |
| Power consumption DC | 5 W |
| Voltage DC | 24 V - DC |
| Closing time | 22 ms |
| Weight | 0.42 kg |
| Product family | EMVP |
Documentation
Documentation
Spare parts
Accessories

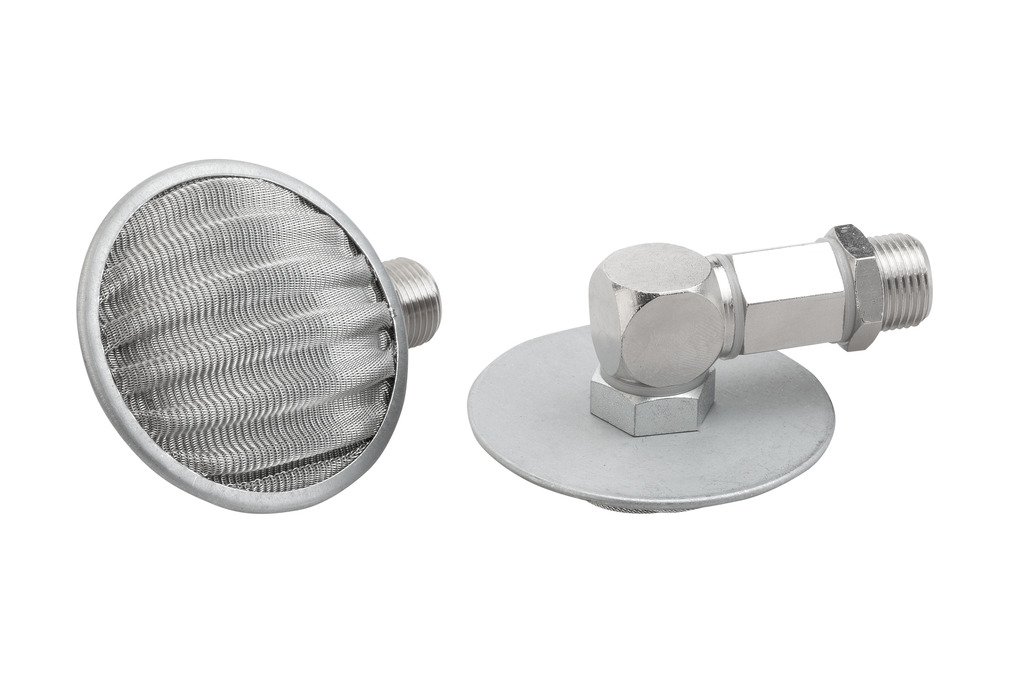

FAS 63x47 G3/8-AG EMVP-1010.05.01.00065Filter with mounting kit
| Outside diameter D | 63 (mm) |
| Length L | 47 (mm) |
| Height H | 19.5 (mm) |
| Thread G1 | G3/8"-M |
| Utilization design | Solenoid valve |
| Size | 10 |
