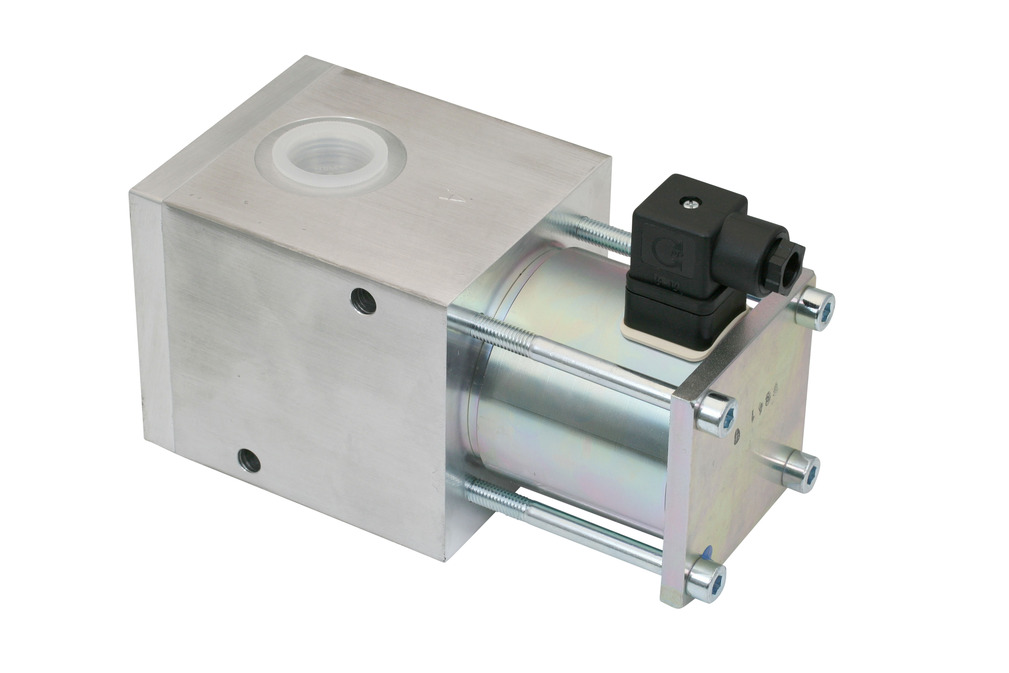

Part no.: 10.05.01.00051
Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 9 mm |
| D | 80 mm |
| G1 | G1"-F |
| G2 | G1"-F |
| G3 | G1"-F |
| H | 100 mm |
| H1 | 172 mm |
| L | 206 mm |
| L2 | 43 mm |
| X1 | 45 mm |
| Y1 | 80 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 25 mm |
| Control valve | Normally closed |
| Nenndurchfluss bei 0,1 bar | 100.5 m³/h |
| Nenndurchfluss bei 0,1 bar | 1,675 l/min |
| Pressure range (operating pressure) [bar] | -0.95 ... 0.00 bar |
| Power consumption DC | 37 W |
| Voltage DC | 24 V - DC |
| Closing time | 208 ms |
| Weight | 5.7 kg |
| Product family | EMVO |
Circuit diagram
Circuit diagram
Documentation
Documentation
Accessories
