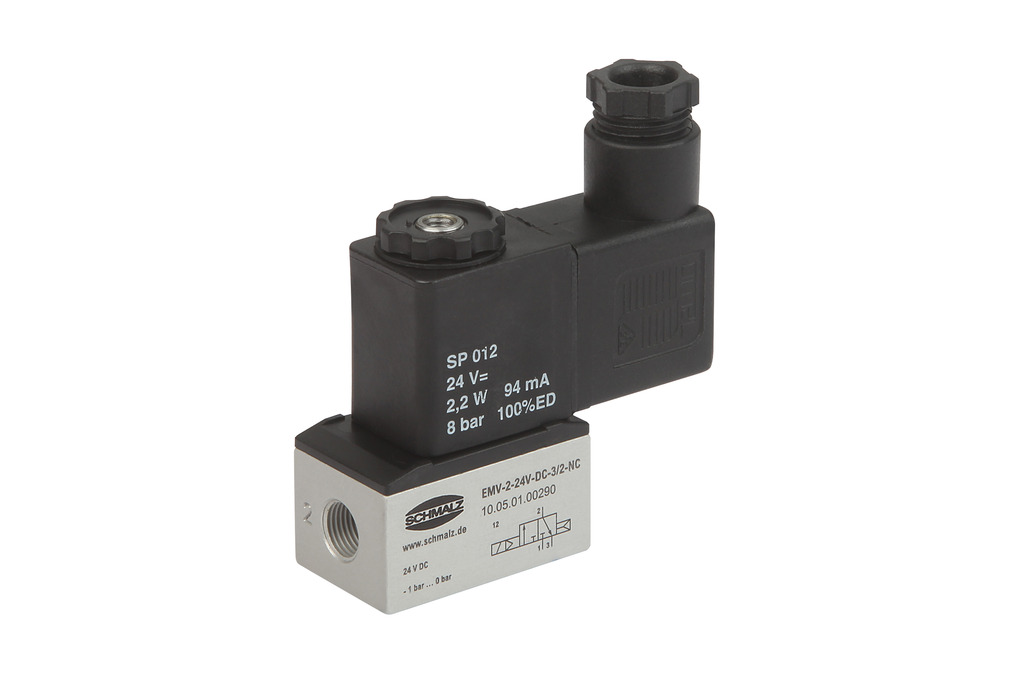

Part no.: 10.05.01.00290
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 25 mm |
| G1 | G1/8"-F |
| G2 | G1/8"-F |
| G5 | M5-F |
| H | 70 mm |
| L | 68 mm |
| X1 | 30 mm |
| Y1 | 16 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 2 mm |
| Nenndurchfluss bei 0,1 bar | 7.2 l/min |
| Nenndurchfluss bei 0,1 bar | 0.4 m³/h |
| Pressure range (operating pressure) [bar] | -1.00 ... 8.00 bar |
| Control valve | Normally closed |
| Power consumption DC | 2.4 W |
| Voltage DC | 24 V - DC |
| Closing time | 12 ms |
| Weight | 0.15 kg |
| Product family | EMV |
