Part no.: 10.05.01.00076

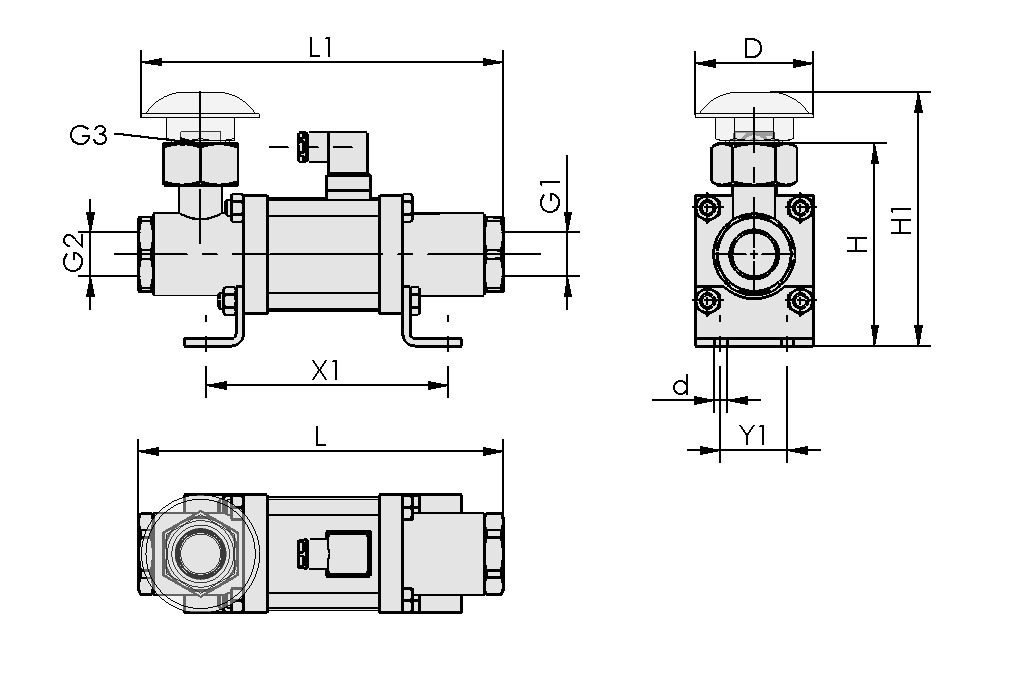

| Attribute | Value |
|---|---|
| d | 8.5 mm |
| D | 80 mm |
| G1 | G1-1/4"-F |
| G2 | G1-1/4"-F |
| G3 | G1-1/4"-F |
| H | 167 mm |
| H1 | 200 mm |
| L | 281 mm |
| L1 | 271.5 mm |
| X1 | 178 mm |
| Y1 | 50 mm |
| Attribute | Value |
|---|---|
| Nominal size | 25 mm |
| Nenndurchfluss bei 0,1 bar | 1,520 l/min |
| Nenndurchfluss bei 0,1 bar | 91.2 m³/h |
| Pressure range (operating pressure) [bar] | -1.00 ... 15.00 bar |

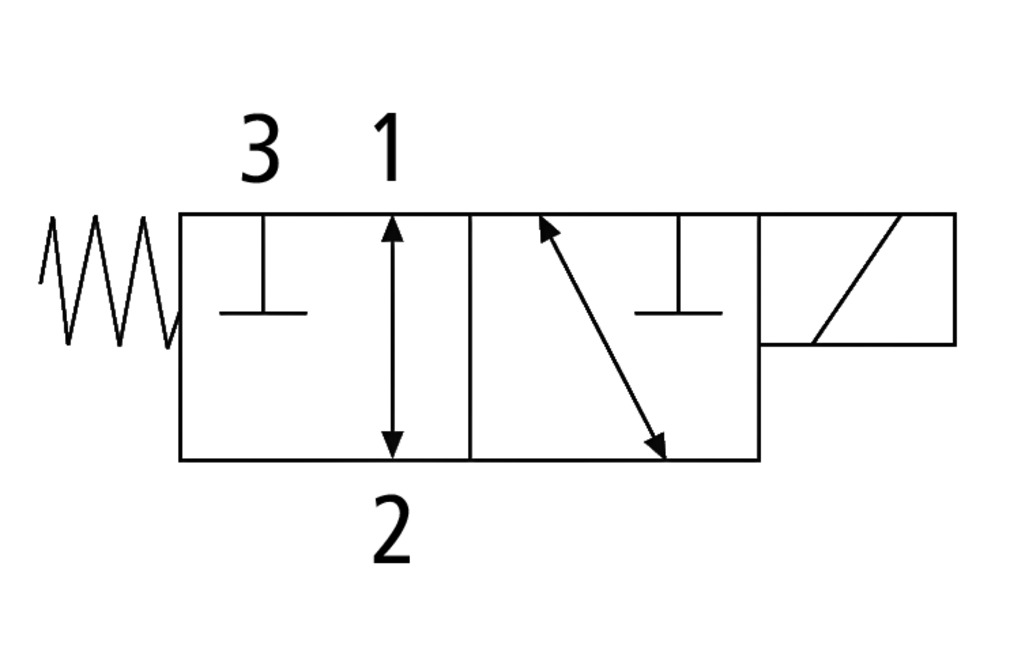

| Control valve | Normally open |
| Power consumption DC | 66 W |
| Voltage DC | 24 V - DC |
| Closing time | 130 ms |
| Weight | 9.6 kg |

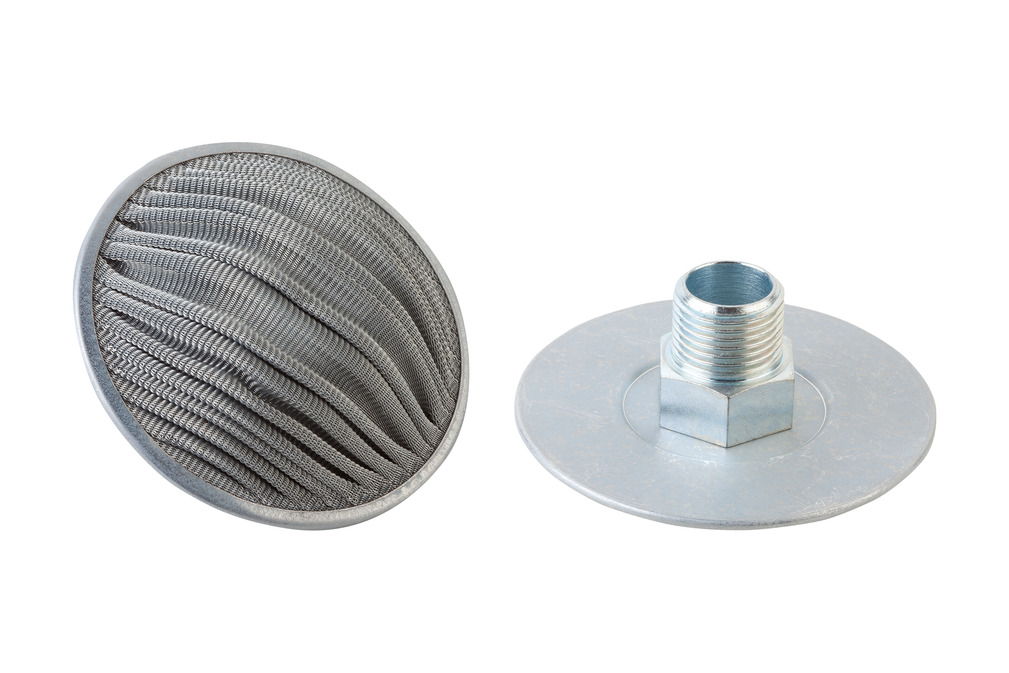

| Product family | EMV |
| Outside diameter D | 80 (mm) |
| Length L | 32 (mm) |
| Thread G1 | G1-1/4"-M |
| Utilization design | Solenoid valve |
| Size | 25+50 |
| Outside diameter D | 80 (mm) |
| Length L | 32 (mm) |
| Thread G1 | G1-1/4"-M |
| Utilization design | Solenoid valve |
| Size | 25+50 |
