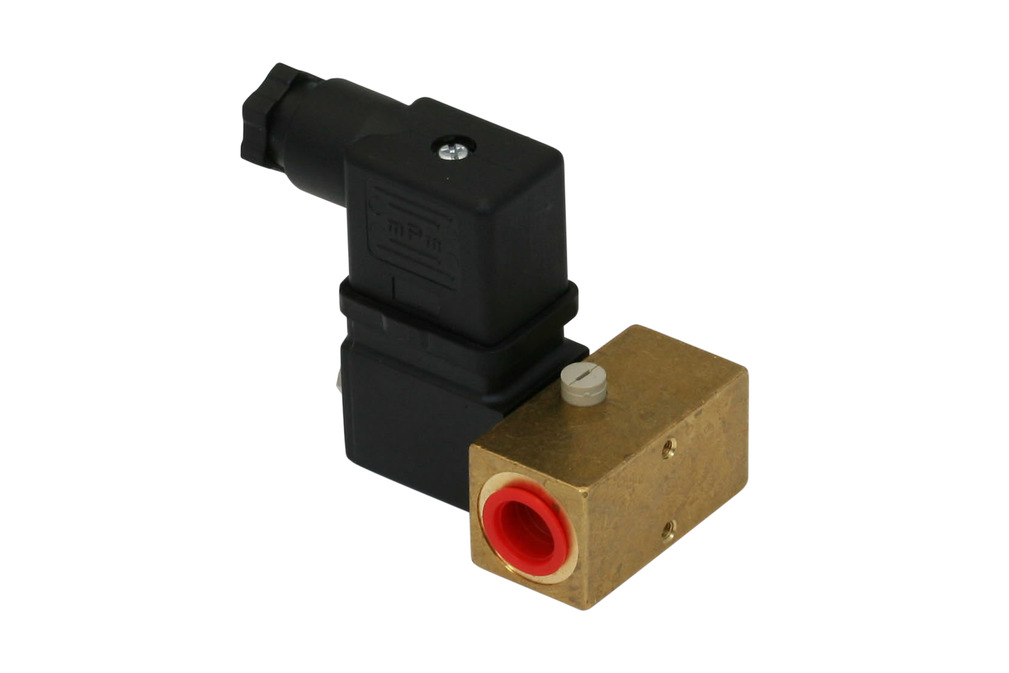

Part no.: 10.05.01.00067
Design Data
Design Data
| Attribute | Value |
|---|---|
| B1 | 61.5 mm |
| B2 | 47 mm |
| G1 | G1/4"-F |
| G5 | M3-F |
| H | 22 mm |
| H1 | 60 mm |
| L | 42 mm |
| LG1 | 12 mm |
| LG5 | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 3 mm |
| Pressure range (operating pressure) [bar] | bar |
| Control valve | Normally closed |
| Power consumption DC | 5 W |
| Voltage DC | 230 V - AC |
| Closing time | 20 ms |
| Weight | 0.2 kg |
| Product family | EMV |
Circuit diagram
Circuit diagram
Documentation
Documentation
