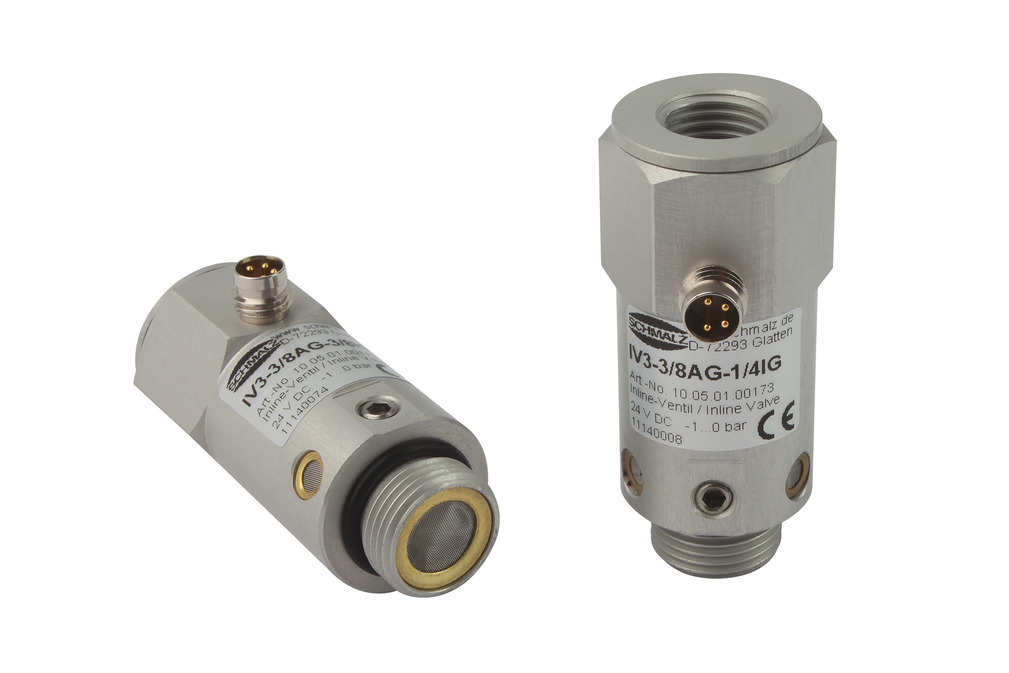

Inline Valves IV
Nominal diameter 3 mm

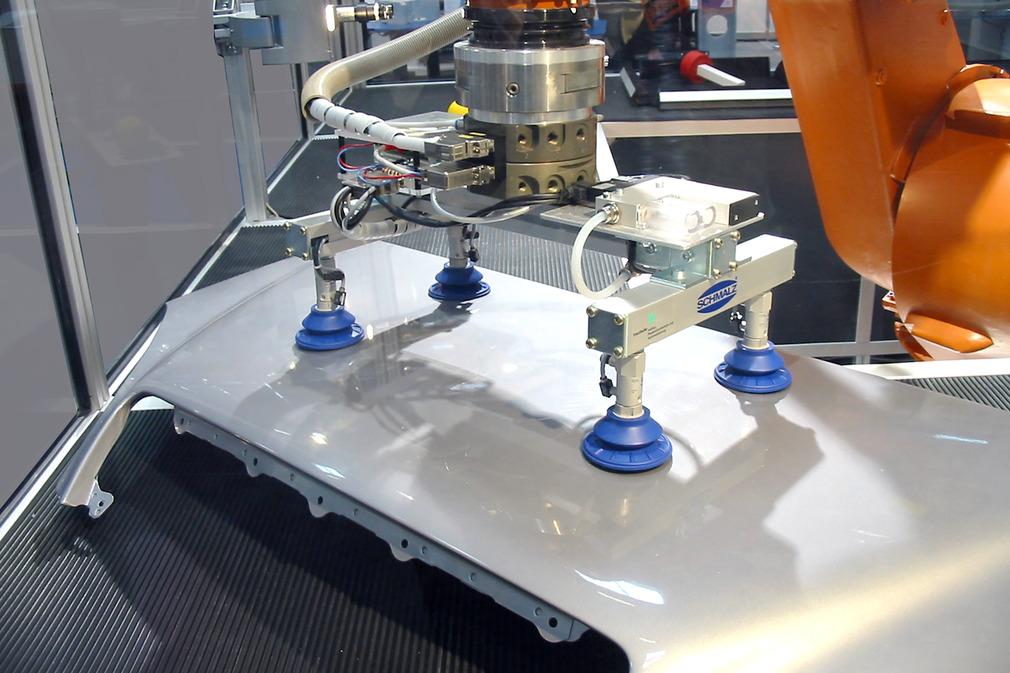

Direct mounting on the suction cup enables control of single suction cups
Very compact design and easy to install
Screen against contamination increases functional reliability
Decentralized control and system monitoring (optional) for more process safety and less downtime
Design
Design
- Attachment facility for vacuum sensor
- External body made of aluminum (2)
- Integrated filter (3) for ventilation
- 4-pin M8 connector (1)
- Nominal diameter 3 mm and nominal flow rate 2 m³/h
Technical Data
Technical Data
- Nominal diameter: 3 mm
- Nominal flow: 2 m³/h
- Voltage: 24 V
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
