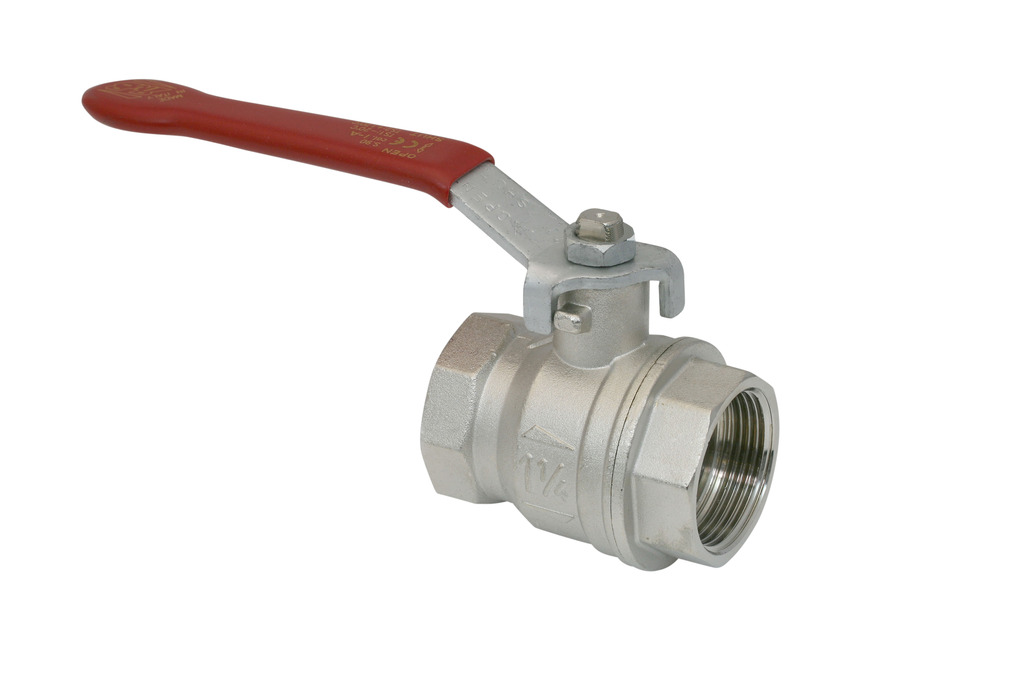

Part no.: 10.05.08.00008
Design Data
Design Data
| Attribute | Value |
|---|---|
| D1 | 59 mm |
| G1 | G1-1/4"-F |
| H | 124.2 mm |
| L | 77 mm |
| L2 | 155 mm |
| LG1 | 15.5 mm |
| SW1 | 48 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nominal size | 32 mm |
| Nominal flow rate | 100 m³/h |
| Nominal flow rate | 1,666.7 l/min |
| Weight | 0.7 kg |
| Product family | KVZ |
