Part no.: 10.01.06.03504

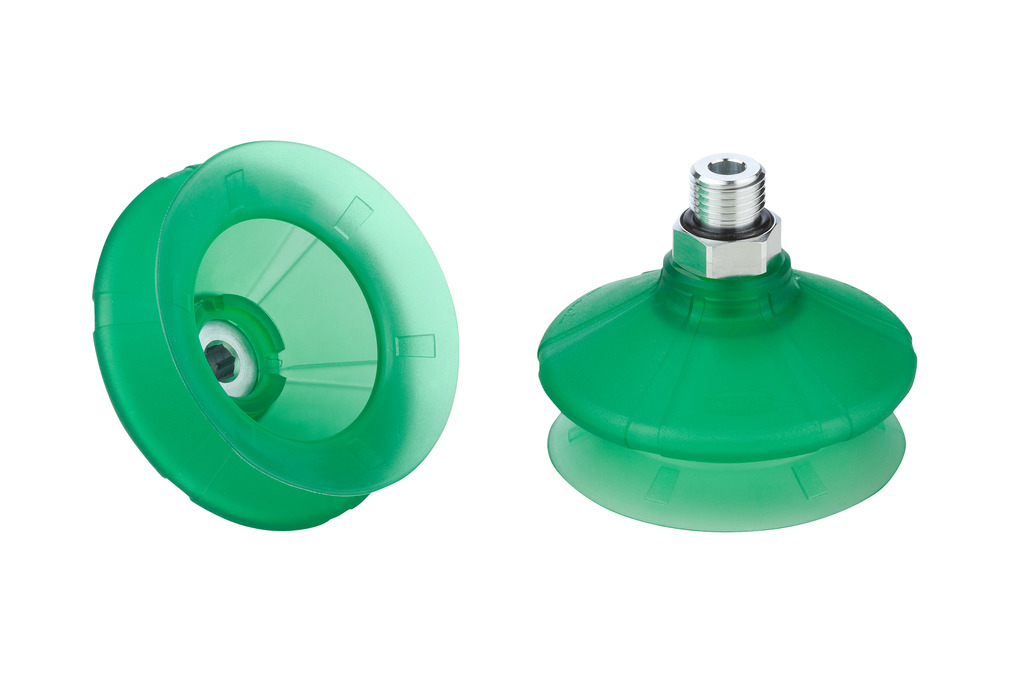

Bellows suction cup (round) for very uneven workpieces
| Size | 80 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Thread G1 | G1/4"-M |
| Number of folds | 1.5 |
| Attribute | Value |
|---|---|
| d2 | 56 mm |
| dn | 6.1 mm |
| Dmax(S) | 88 mm |
| Ds | 81.4 mm |
| G1 | G1/4"-M |
| H | 53.9 mm |
| LG1 | 10 mm |
| SW1 | 22 mm |
| Z (Stroke) | 23.5 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 166 N |
| Pull-off force | 200 N |
| Lateral force | 59 N |
| Volume | 98.36 cm³ |
| Workpiece radius min. (convex) | 70 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Size | 80 |
| Number of folds | 1.5 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 Shore A |
| Weight | 74.4 g |
| Product family | SPB1 |
| Connection type | 065 |
| Connection | G1/4"-M |
| Length L1 | 36.1 (mm) |
| Fitting length | 8 (mm) |
| Nominal diameter dn | 6.1 (mm) |
| Shape | Self Locking |
| Size | 80 |
| Suction cup material | Elastodur ED |
| Material hardness [Shore A] | 65 (Shore A) |
| Number of folds | 1.5 |
| Outside diameter D | 32.5 (mm) |
| Length L | 0.8 (mm) |
| Material | Brass / stainless steel |
| Filter pore size | 280 (µm) |
| Mesh size | 0.28 (mm) |
| Wire diameter | 0.16 (mm) |
| Key width SW1 | 6 (mm) |
| Nominal size | 60 |
| Key width SW1 | 6 (mm) |
| Nominal size | 80 |
| Key width SW1 | 6 (mm) |
| Nominal size | 100 |
| Key width SW1 | 6 (mm) |
| Nominal size | 120 |
| Key width SW1 | 6 (mm) |
| Nominal size | 200 |
| Key width SW1 | 6 (mm) |
| Nominal size | 240 |
