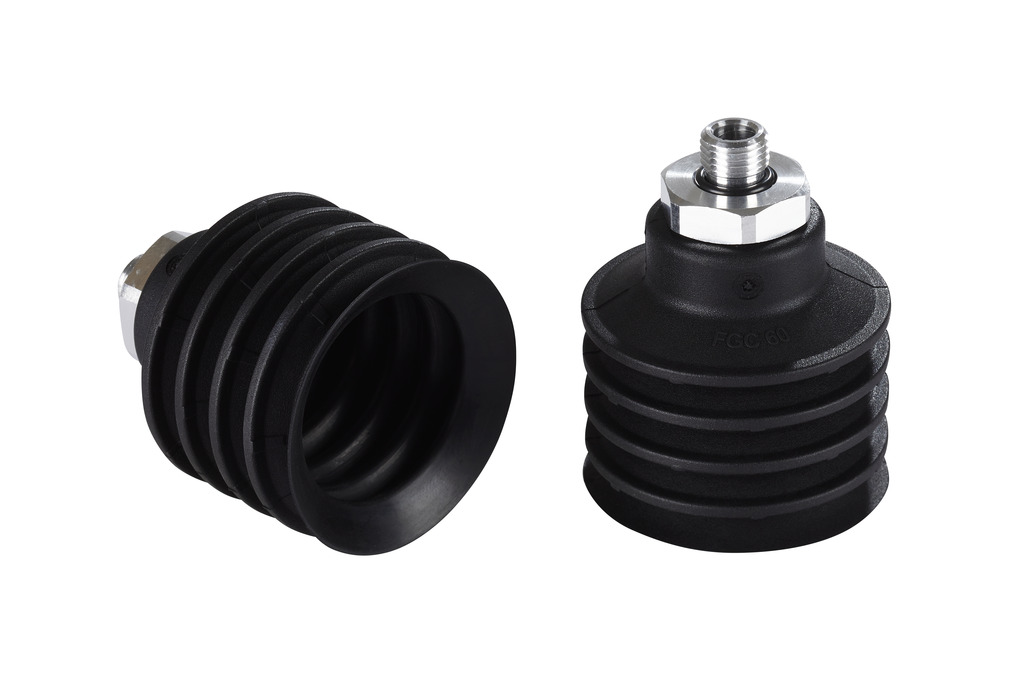

Part no.: 10.01.06.05664

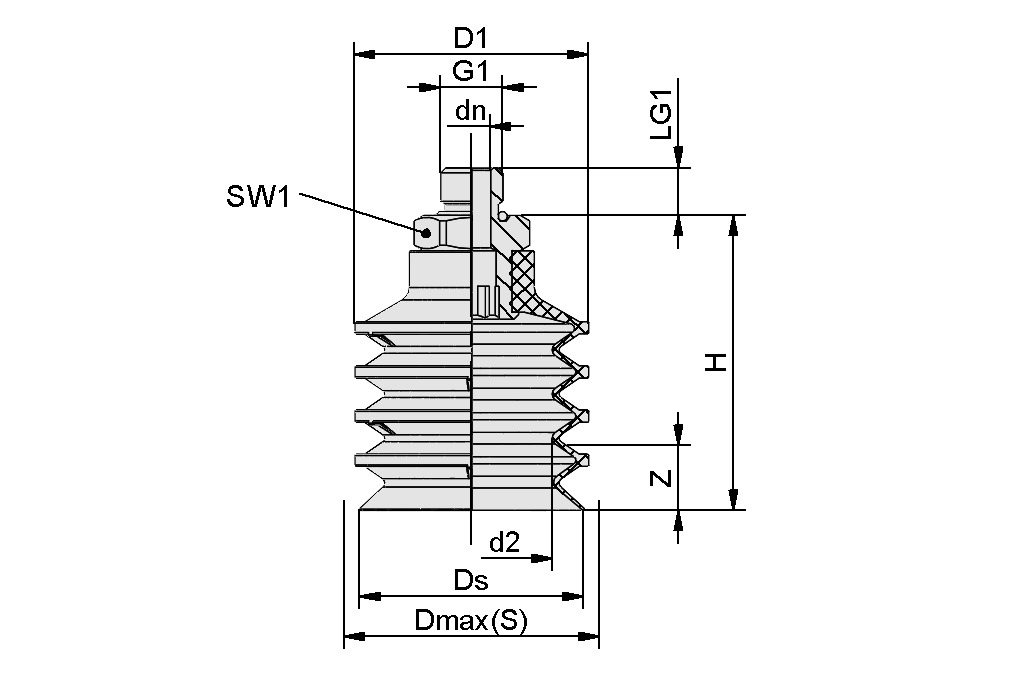

Design Data
Design Data
| Attribute | Value |
|---|---|
| Z (Stroke) | 32 mm |
| H | 68 mm |
| Vacuum connection | G3/8"-M |
| D1 | 60 mm |
| d2 | 41.5 mm |
| Ds | 58 mm |
| Dmax(S) | 61 mm |
| dn | 10.3 mm |
| G1 | G3/8"-M |
| G1 | G3/8-AG |
| LG1 | 10 mm |
| SW1 | 27 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 4.5 |
| Size | 60 |
| Suction cup material | Nitrile rubber NBR |
| Suction force (-600mbar) | 80 N |
| Product family | FSGC |
| Material hardness [Shore A] | 55 Shore A |
| Nipple material | Aluminum |
| Pull-off force (real) | 84 N |
| Volume | 80.2 cm³ |
| Hose inner diameter (recom.) d | 12 mm |
