Part no.: 10.01.06.04055

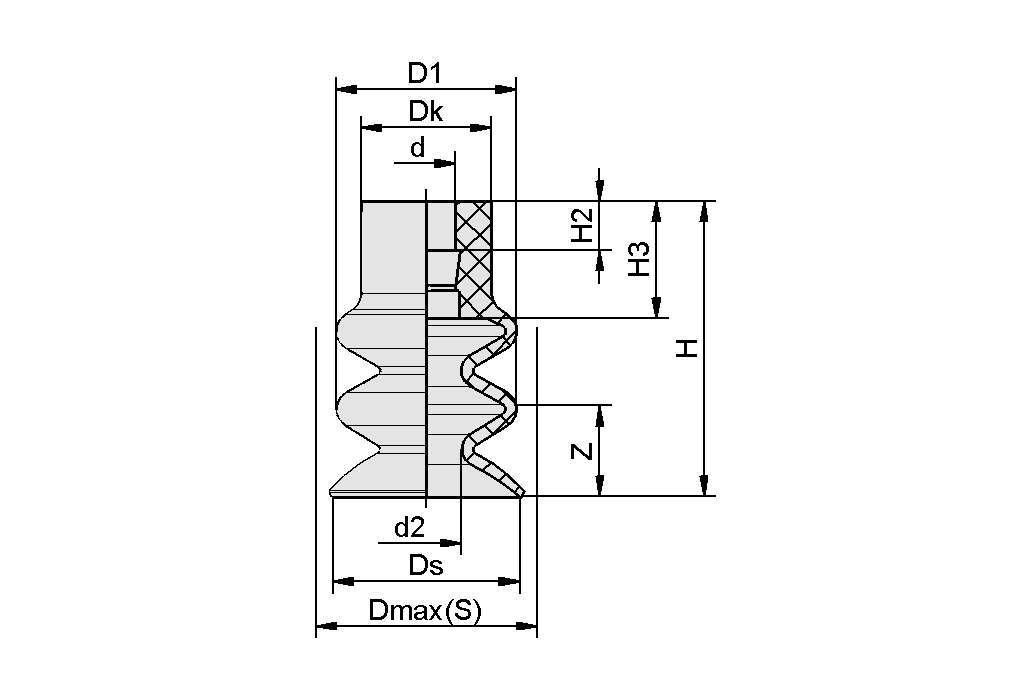

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 4.5 mm |
| d2 | 5.4 mm |
| D1 | 13.9 mm |
| Dk | 10 mm |
| Dmax(S) | 15.5 mm |
| Ds | 14.5 mm |
| H | 22.8 mm |
| H2 | 3.8 mm |
| H3 | 9 mm |
| Z (Stroke) | 9 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 1.37 N |
| Pull-off force | 5.7 N |
| Volume | 1.06 cm³ |
| Workpiece radius min. (convex) | 15 mm |
| Size | 14 |
| Nipple family | N 016 |
| Number of folds | 2.5 |
| Suction cup material | Silicone SI-HD |
| Material hardness [Shore A] | 65 Shore A |
| Weight | 1.5 g |
| Product family | FG |
