- NEW

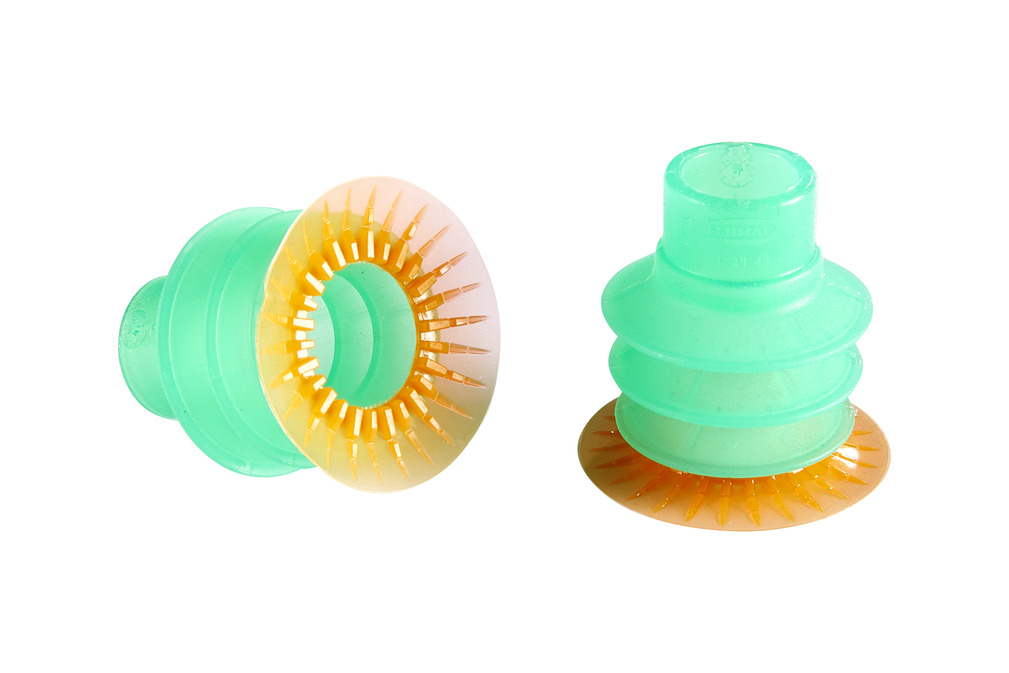

Part no.: 10.01.06.05244
Design Data
Design Data
| Attribute | Value |
|---|---|
| Z (Stroke) | 19.3 mm |
| d | 16 mm |
| d1 | 19.6 mm |
| d2 | 18.2 mm |
| Dk | 21 mm |
| Dmax(S) | 43.5 mm |
| Ds | 43 mm |
| H | 46.6 mm |
| H2 | 13 mm |
| H3 | 14.4 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 3.5 |
| Size | 43 |
| Suction cup material | Silicone SI |
| Suction force (-600mbar) | 40 N |
| Product family | PSPF |
| Material hardness [Shore A] | 30 Shore A |
| Material hardness | 55 Shore A |
| Material characteristics | FDA-compatible |
| Volume | 16.65 cm³ |
