Part no.: 10.01.06.03273

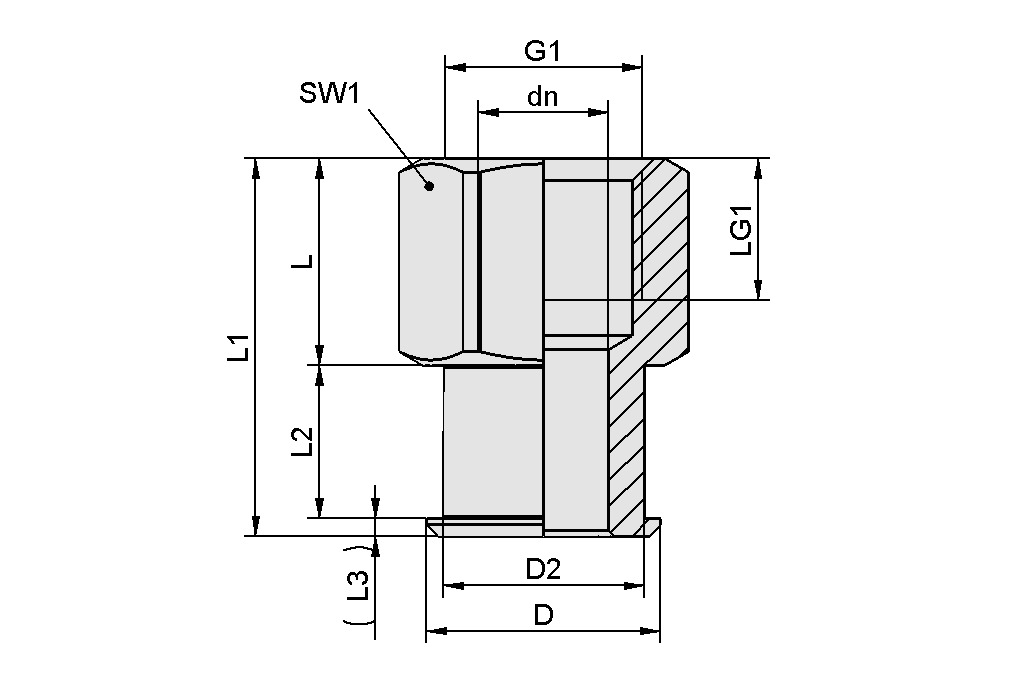

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 11.4 mm |
| D | 25 mm |
| D2 | 21 mm |
| G1 | G1/4"-F |
| L | 21.5 mm |
| L1 | 37.5 mm |
| L2 | 14 mm |
| L3 | 2 mm |
| LG1 | 12 mm |
| SW1 | 27 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Connection type | 090 |
| Material | Aluminum |
| Weight | 42.1 g |
