Part no.: 10.01.01.12371

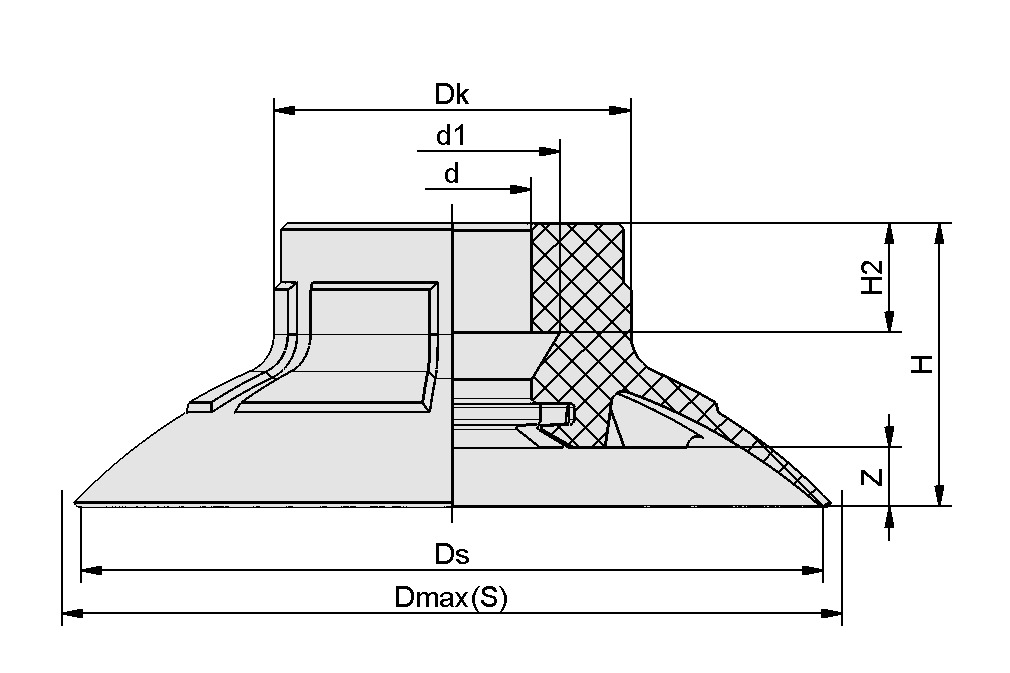

Design Data

Attribute	Value
d	7.5 mm
d1	10.5 mm
Dk	15.1 mm
Dmax(S)	28 mm
Ds	26.4 mm
H	11 mm
H2	4.6 mm
Z (Stroke)	2 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	22.7 N
Pull-off force	27.1 N
Lateral force	17 N
Volume	1.7 cm³
Workpiece radius min. (convex)	30 mm
Hose inner diameter (recom.) d	4 mm
Size	25
Nipple family	SC 040
Number of folds	0
Suction cup material	Elastodur ED
Material hardness [Shore A]	65 Shore A
Weight	1.6 g
Product family	SPF

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Documentation

Accessories

SIEB 11x1 MS-A2 280 0.28/0.16 10.07.01.00309 Screen protects the vacuum system from contamination

Outside diameter D	11 (mm)
Length L	1 (mm)
Material	Brass / stainless steel
Filter pore size	280 (µm)
Mesh size	0.28 (mm)
Wire diameter	0.16 (mm)

Show product
