Part no.: 10.01.06.04392

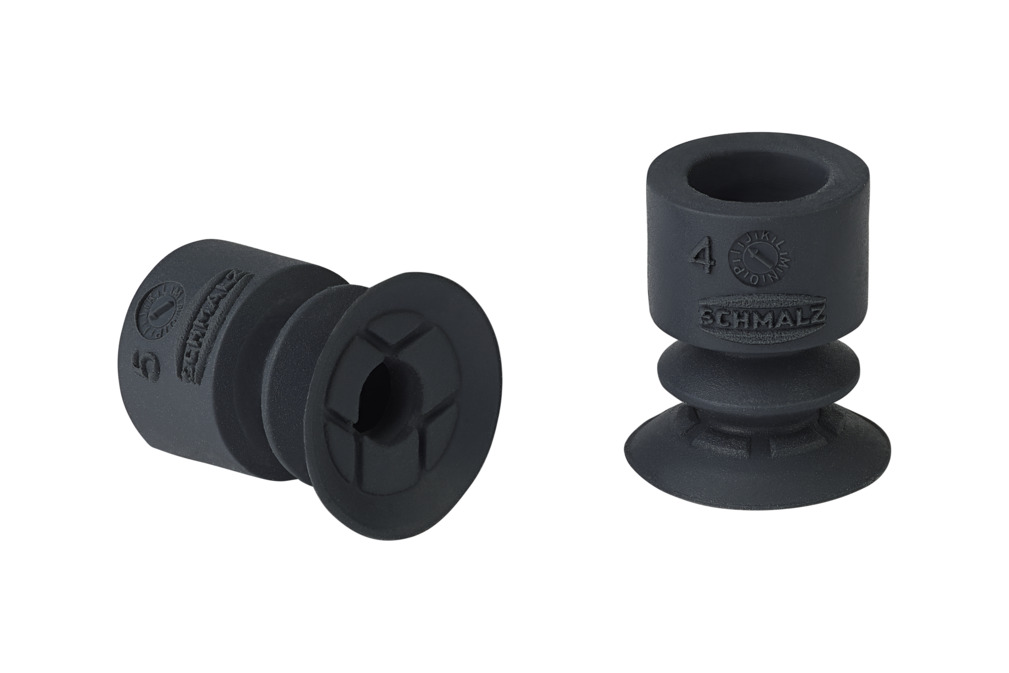

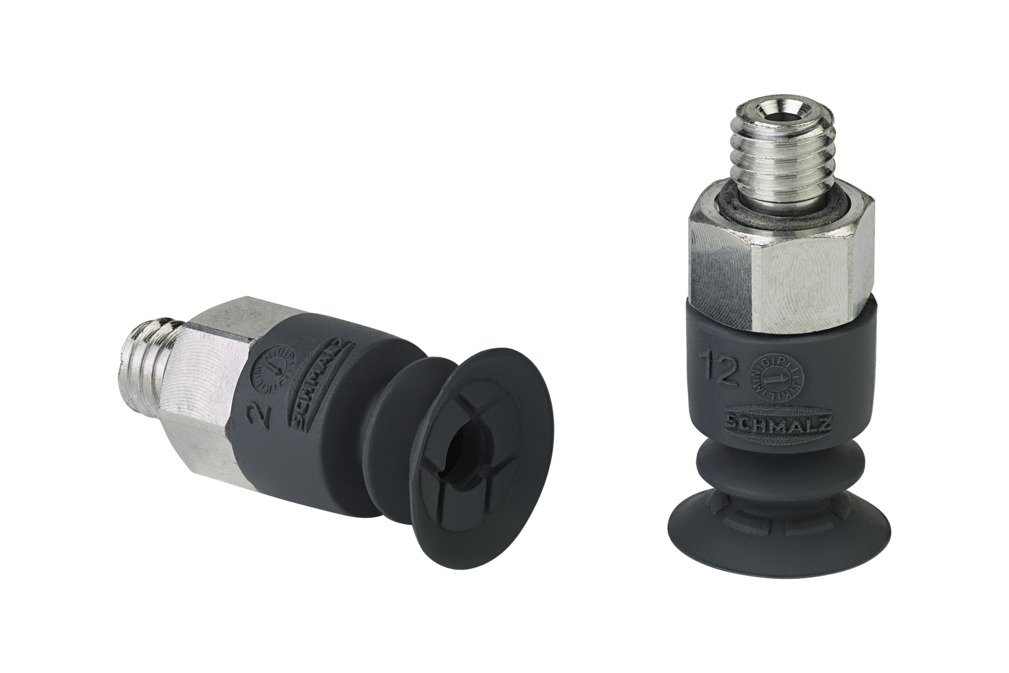

Bellows suction cup (round) for very uneven workpieces flexible workpieces
| Size | 10 |
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 (Shore A) |
| Attribute | Value |
|---|---|

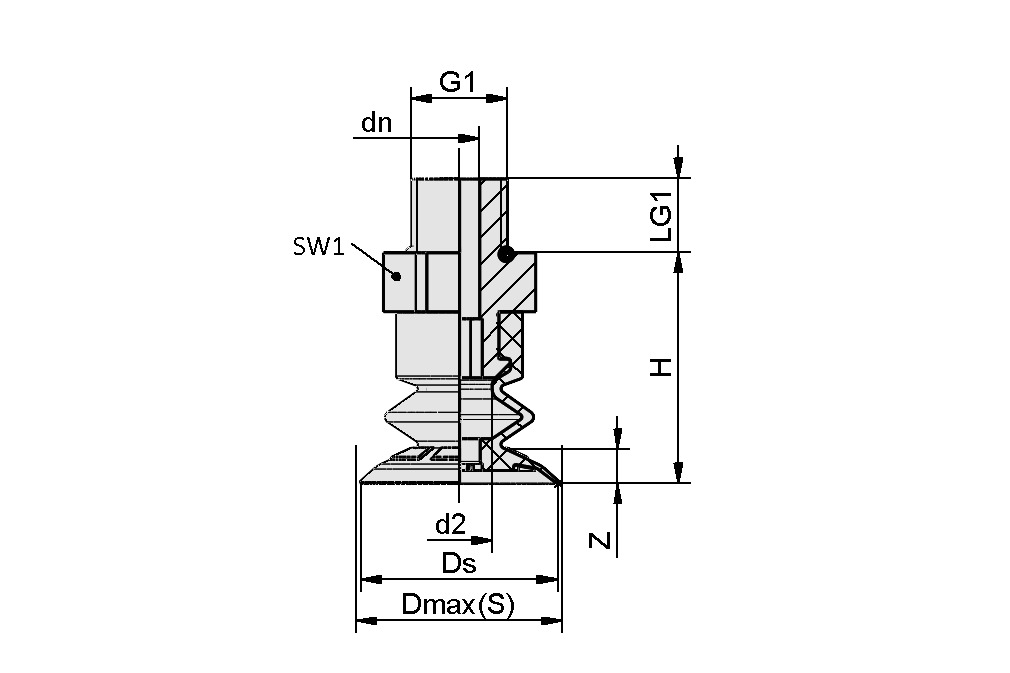

| Dmax(S) | 11 mm |
| Ds | 10 mm |
| d2 | 4.2 mm |
| dn | 1.8 mm |
| G1 | M5-AG |
| LG1 | 4.7 mm |
| H | 17.3 mm |
| SW1 | 8 mm |
| Z (Stroke) | 2.5 mm |
| Attribute | Value |
|---|---|
| Pull-off force | 2.7 N |
| Suction force (-600mbar) | 0.5 N |
| Volume | 0.3 cm³ |
| Size | 10 |
| Number of folds | 1.5 |
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 Shore A |
| Product family | SFB1 |
| Size | 10 |
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 (Shore A) |
| Number of folds | 1.5 |
| Connection type | 030 |
| Connection | M5-M |
| Length L1 | 15.5 (mm) |
| Fitting length | 5 (mm) |
| Nominal diameter dn | 1.8 (mm) |
