Part no.: 10.01.01.14671

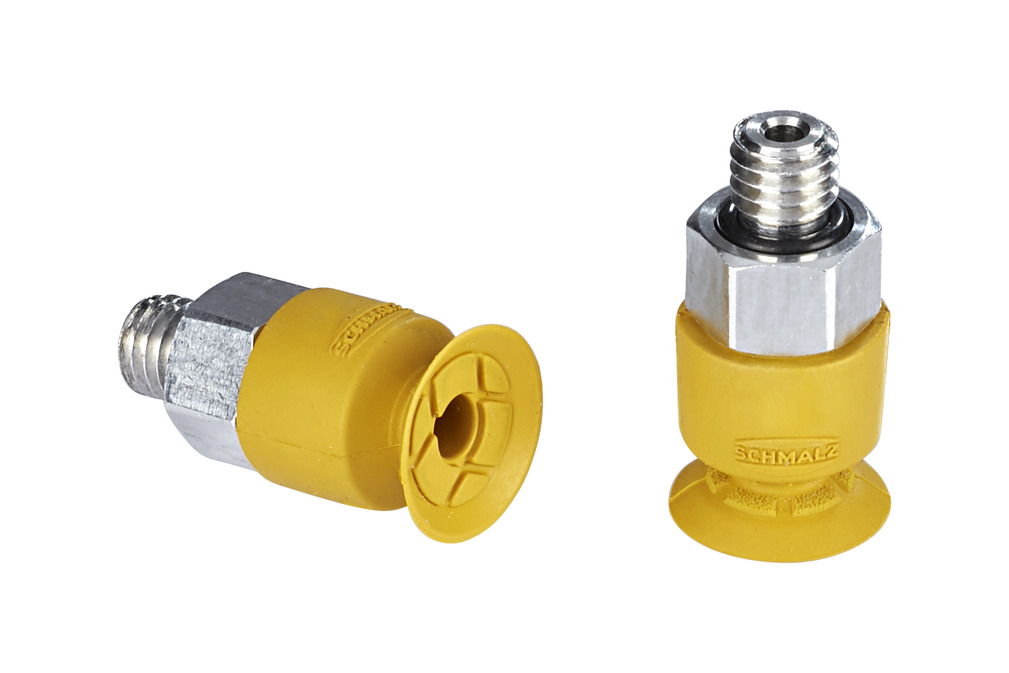

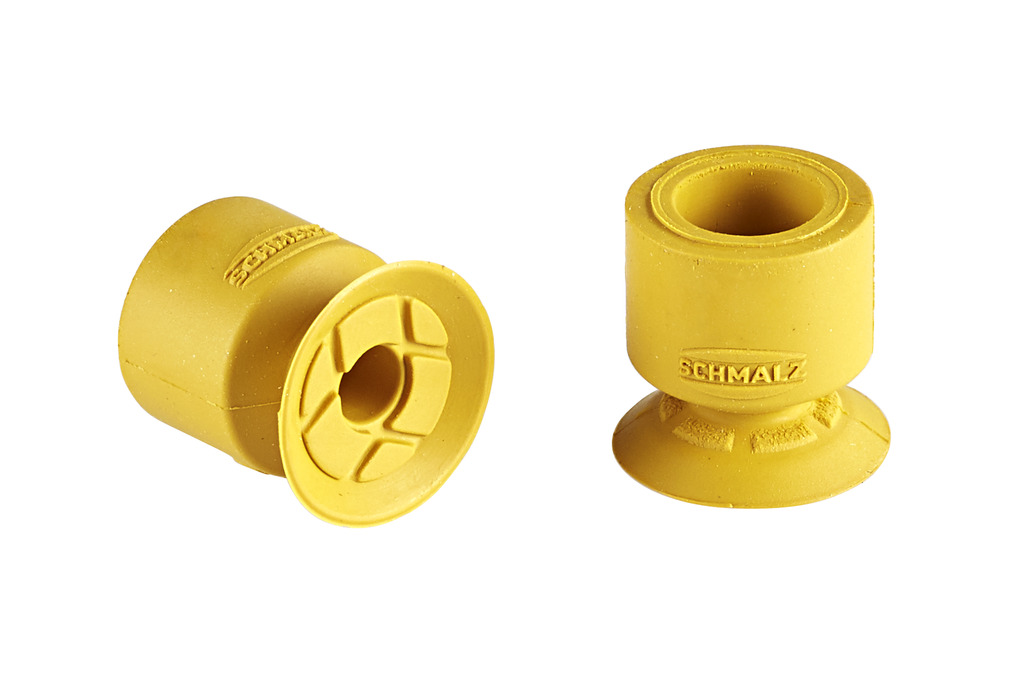

Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 10 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Attribute | Value |
|---|---|

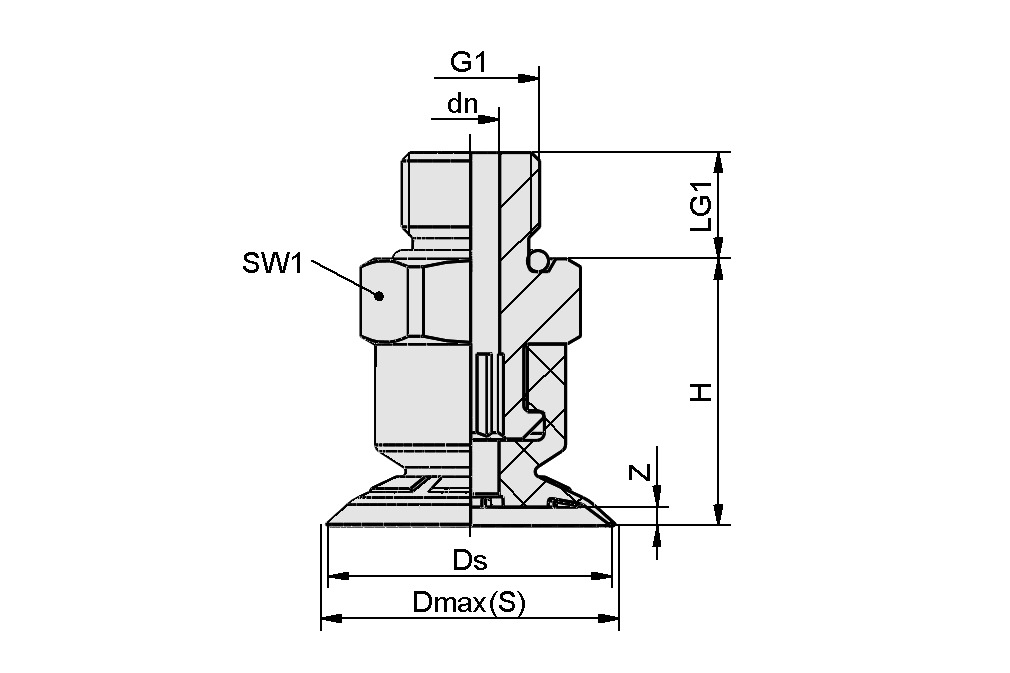

| Dmax(S) | 11 mm |
| Ds | 10 mm |
| dn | 1.8 mm |
| G1 | M5-AG |
| LG1 | 4.7 mm |
| H | 15.4 mm |
| SW1 | 8 mm |
| Z (Stroke) | 0.7 mm |
| Attribute | Value |
|---|---|
| Pull-off force | 3 N |
| Suction force (-600mbar) | 2.7 N |
| Volume | 0.25 cm³ |
| Size | 10 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 1.6 g |
| Product family | SFF |
| Size | 10 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 0 |
| Connection type | 030 |
| Connection | M5-M |
| Length L1 | 15.5 (mm) |
| Fitting length | 5 (mm) |
| Nominal diameter dn | 1.8 (mm) |
