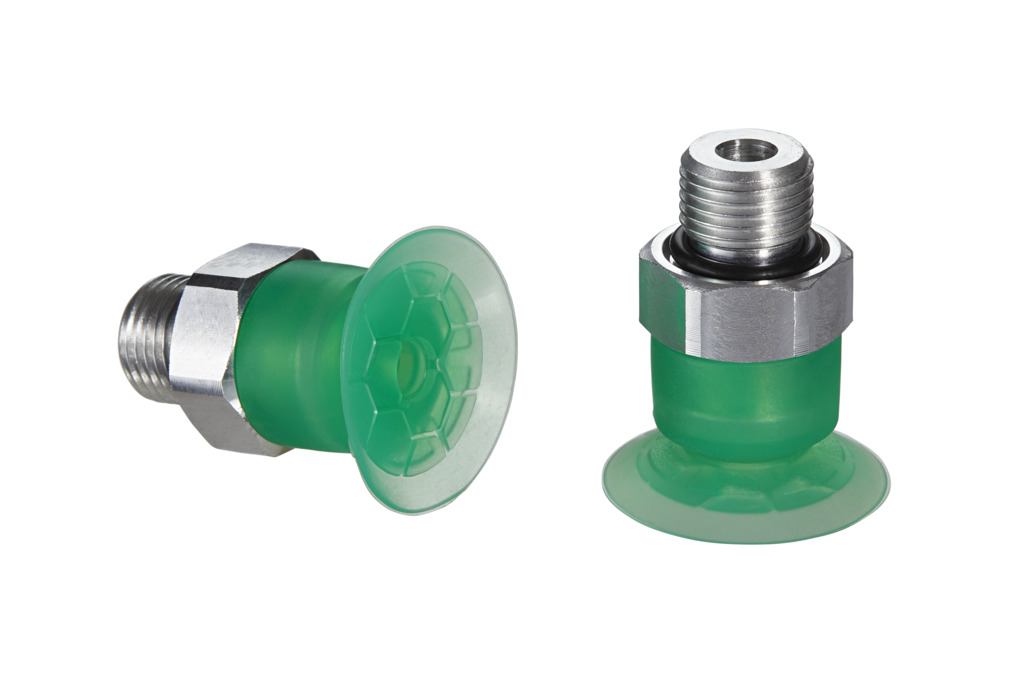

Part no.: 10.01.01.14621

Design Data

Attribute	Value
Dmax(S)	21 mm
Ds	20 mm
dn	4 mm
G1	G1/4-AG
LG1	10 mm
H	18.8 mm
SW1	17 mm
Z (Stroke)	1.3 mm

Technical Data

Attribute	Value
Pull-off force	11.8 N
Suction force (-600mbar)	11.6 N
Volume	0.8 cm³
Size	20
Number of folds	0
Suction cup material	Silicone SI
Material hardness [Shore A]	55 Shore A
Weight	8.6 g
Product family	SFF

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
