Part no.: 10.01.01.14261

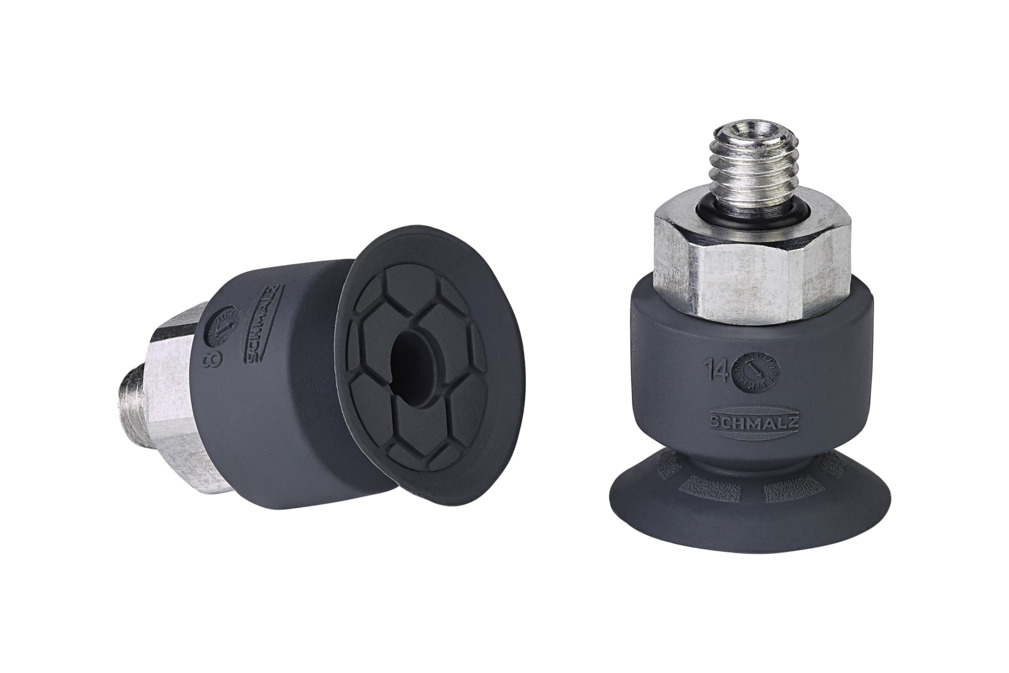

Flat suction cup (round) for dynamic handling of thin and flexible workpieces
| Size | 15 |
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 (Shore A) |

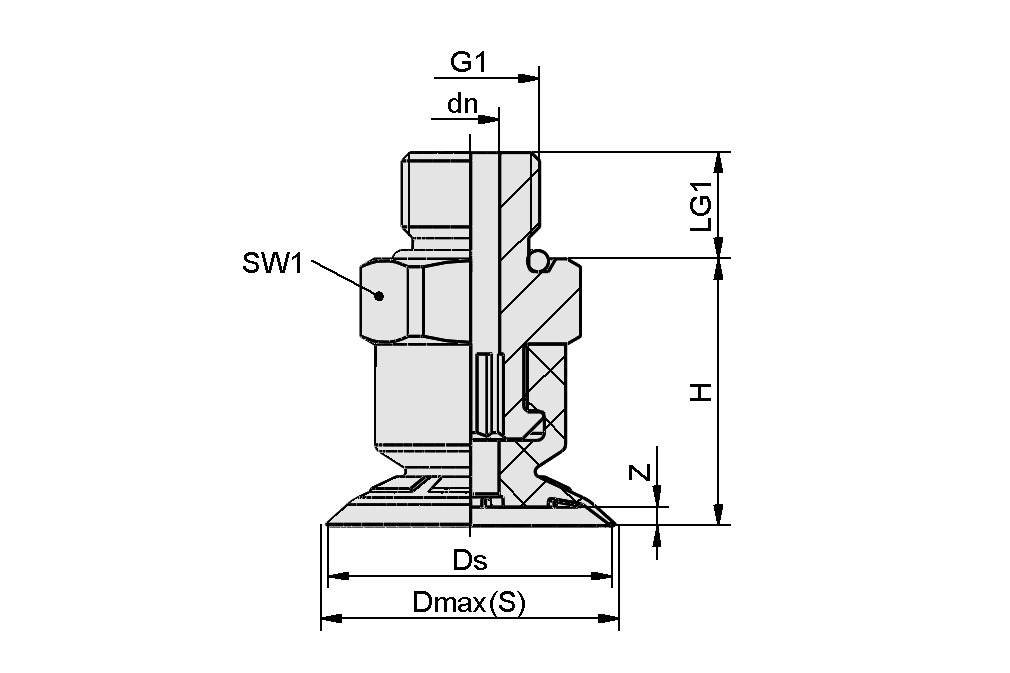

| Attribute | Value |
|---|---|
| Dmax(S) | 16 mm |
| Ds | 15 mm |
| dn | 1.8 mm |
| G1 | M5-AG |
| LG1 | 4.7 mm |
| H | 17.5 mm |
| SW1 | 8 mm |
| Z (Stroke) | 1 mm |
| Attribute | Value |
|---|---|
| Pull-off force | 5.8 N |
| Suction force (-600mbar) | 5.8 N |
| Volume | 0.6 cm³ |
| Size | 15 |
| Number of folds | 0 |
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 Shore A |
| Weight | 2.1 g |
| Product family | SFF |
| Size | 15 |
| Suction cup material | EPDM |
| Material hardness [Shore A] | 45 (Shore A) |
| Number of folds | 0 |
| Connection type | 040 |
| Vacuum connection | M5-M |
| Fitting length | 5 (mm) |
| Nominal diameter dn | 1.8 (mm) |
