SGP 40 HT1-60 N035
Part no.: 10.01.01.12812
Flat suction cup (round) for careful gripping of paper, plastic film, etc.
| Size | 40 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |

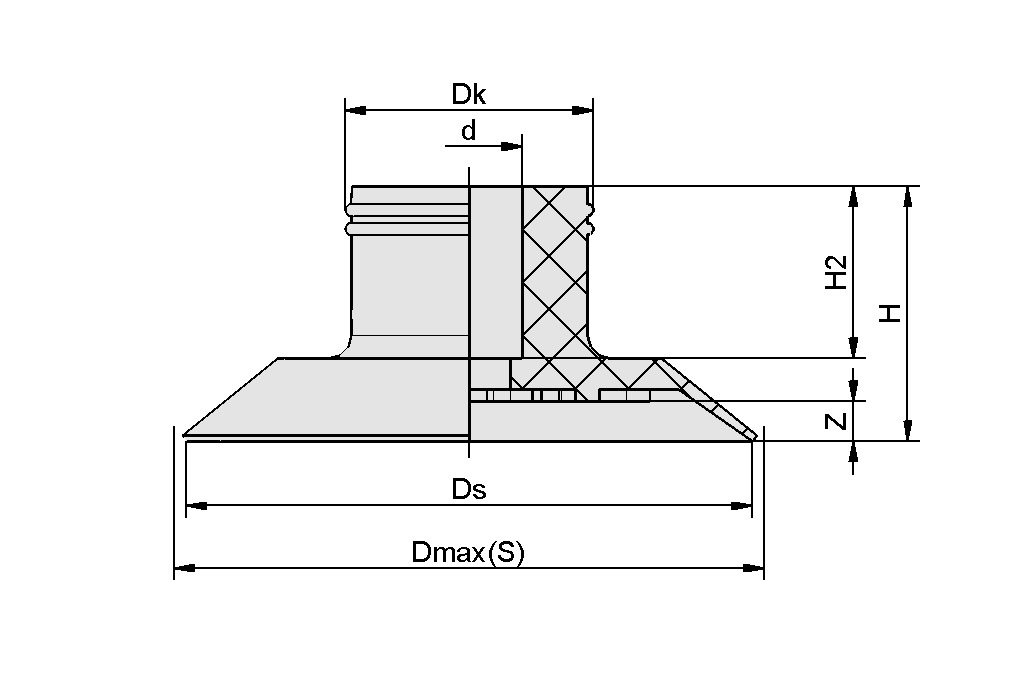

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 8 mm |
| Dk | 16 mm |
| Dmax(S) | 42 mm |
| Ds | 40 mm |
| H | 20.6 mm |
| H2 | 14.5 mm |
| Z (Stroke) | 2.3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 33 N |
| Volume | 3.8 cm³ |
| Size | 40 |
| Nipple family | N 035 |
| Number of folds | 0 |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 5.2 g |
| Product family | SGP |
