SGP 34 NK-40 N033

Part no.: 10.01.01.10829

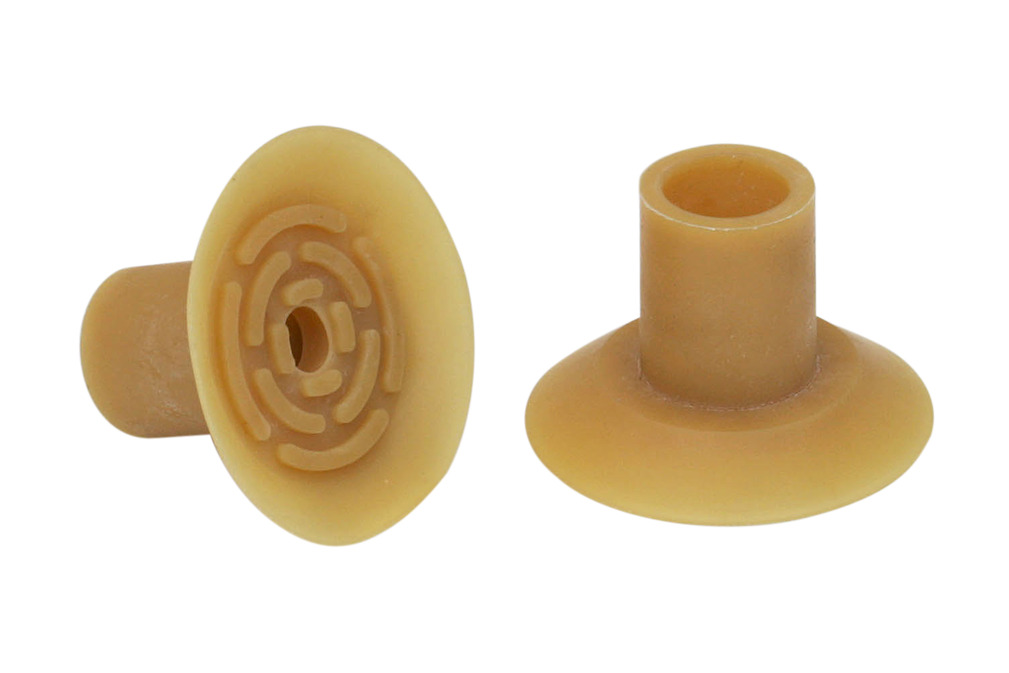

Flat suction cup (round) for careful gripping of paper, plastic film, etc.

Size	34
Suction cup material	Natural rubber NK
Material hardness [Shore A]	40 (Shore A)

Product information

Design Data

Attribute	Value
d	11.2 mm
Dk	15.2 mm
Dmax(S)	37.5 mm
Ds	34 mm
H	23 mm
H2	16.8 mm
Z (Stroke)	2.2 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	25 N
Volume	3.7 cm³
Size	34
Nipple family	N 033
Number of folds	0
Suction cup material	Natural rubber NK
Material hardness [Shore A]	40 Shore A
Weight	5.6 g
Product family	SGP

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
