Part no.: 10.01.01.00787

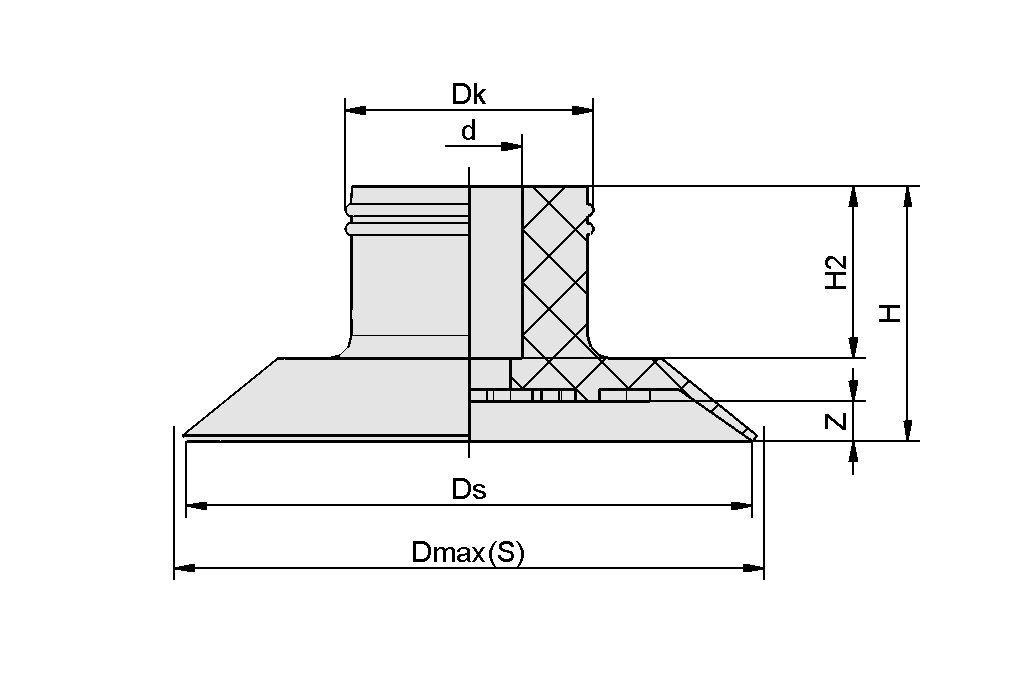

Design Data

Attribute	Value
d	11.2 mm
Dk	15.6 mm
Dmax(S)	32 mm
Ds	30 mm
H	22.2 mm
H2	15.7 mm
Z (Stroke)	2 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	19 N
Volume	3 cm³
Size	30
Nipple family	N 033
Number of folds	0
Suction cup material	Natural rubber NK
Material hardness [Shore A]	40 Shore A
Weight	3.1 g
Product family	SGP

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
