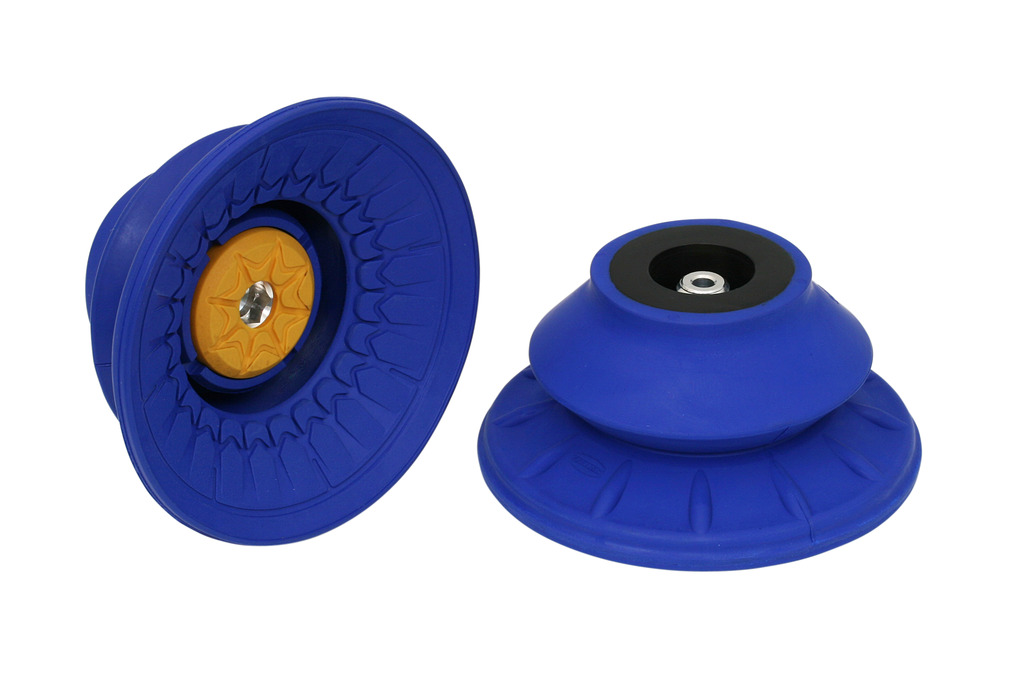

Part no.: 10.01.06.01880
Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 19 mm |
| Dmax(S) | 86 mm |
| dn | 4 mm |
| Ds | 83 mm |
| H | 39 mm |
| H2 | 2 mm |
| LG1 | 11.5 mm |
| SW1 | 8 mm |
| Z (Stroke) | 14.3 mm |
| G1 | M10-M |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Number of folds | 1.5 |
| Size | 80 |
| Suction cup material | Nitrile rubber NBR |
| Suction force (-600mbar) | 135 N |
| Pull-off force | 245 N |
| Lateral force | 172 N |
| Lateral force oily surface | 158 N |
| Volume | 54 cm³ |
| Workpiece radius min. (convex) | 100 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Product family | SABT-C |
Documentation
Documentation
Spare parts
REIB-SCHE 28x9.5 XNBR-4510.01.01.11994Friction washer
| Outside diameter D | 28 (mm) |
| Length L | 9.5 (mm) |
| Material | Perbunan XNBR |

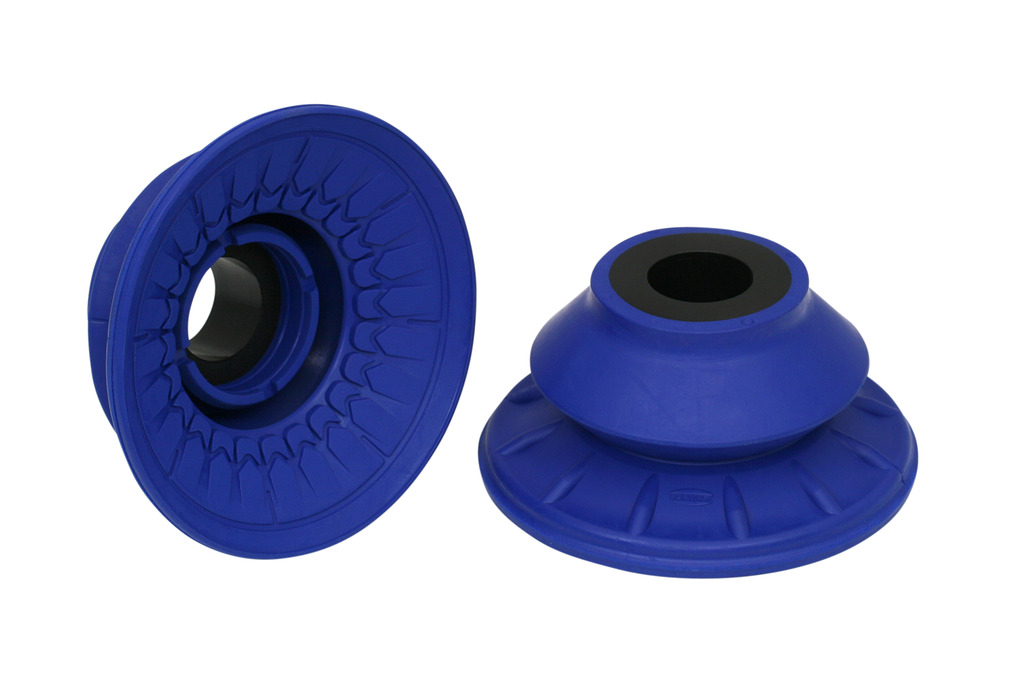

SABT 80 NBR-6010.01.06.01879Bellows suction cup (round)
with 1.5 bellows
| Size | 80 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Number of folds | 1.5 |
