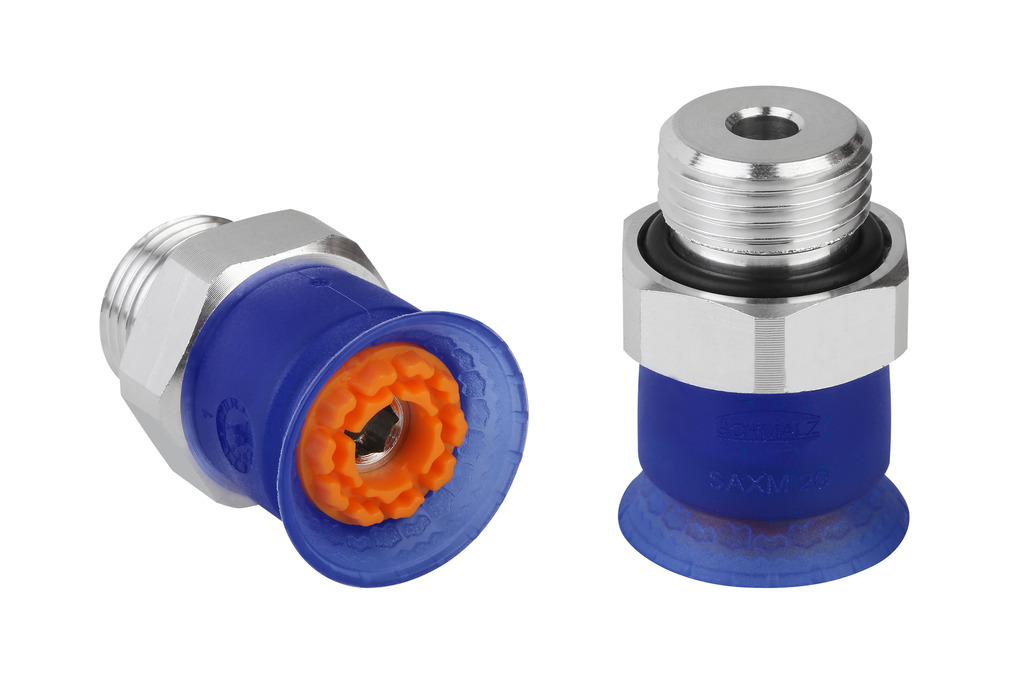

Part no.: 10.01.19.00098

Design Data

Attribute	Value
dn	4.1 mm
Dmax(S)	26 mm
Ds	21.8 mm
G1	M10-M
H	23.7 mm
LG1	10 mm
SW1	17 mm
Z (Stroke)	3 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	20 N
Lateral force	15 N
Lateral force oily surface	20 N
Volume	1.55 cm³
Workpiece radius min. (convex)	20 mm
Hose inner diameter (recom.) d	5 mm
Size	20
Connection	M10-M
Number of folds	0
Suction cup material	Elastodur ED
Material hardness [Shore A]	85 Shore A
Weight	13.2 g
Product family	SAXM

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
