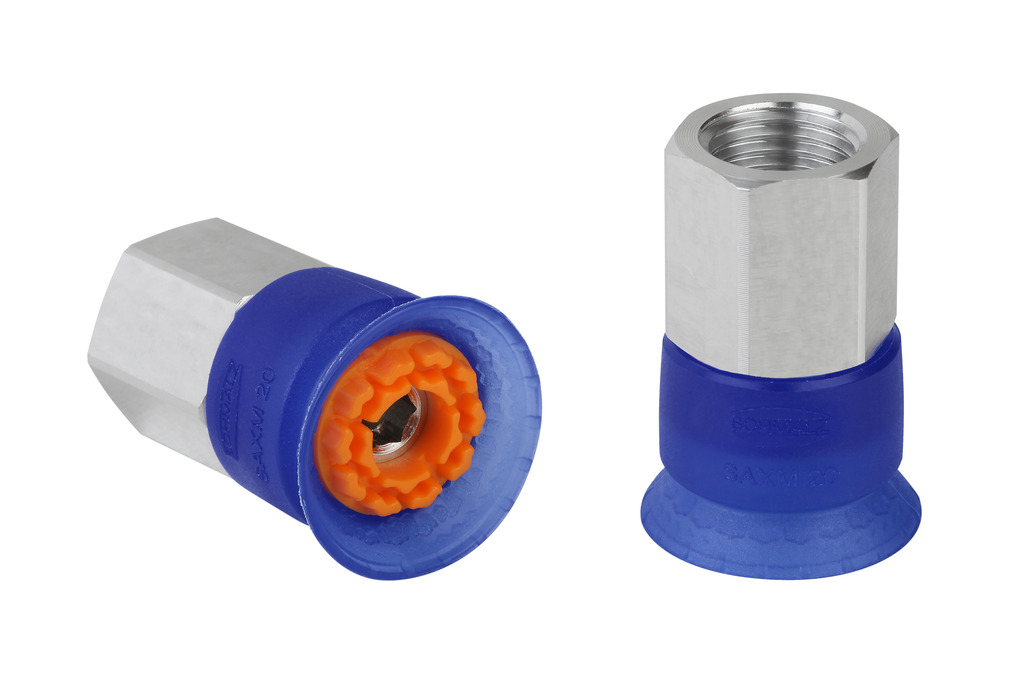

SC-A 045 G1/4-IG L10.01.06.02736Schmalz-Connector upper part
Connection type | 045 |
Thread G1 | G1/4"-F |
Fitting length | 17.2 (mm) |
Shape | Self Locking |
Part no.: 10.01.19.00080
Attribute | Value |
---|---|
dn | 5.1 mm |
Dmax(S) | 26 mm |
Ds | 21.8 mm |
G1 | G1/4"-F |
H | 33.7 mm |
LG1 | 12 mm |
SW1 | 17 mm |
Z (Stroke) | 3 mm |
Attribute | Value |
---|---|
Suction force (-600mbar) | 20 N |
Lateral force | 15 N |
Lateral force oily surface | 20 N |
Volume | 1.55 cm³ |
Workpiece radius min. (convex) | 20 mm |
Hose inner diameter (recom.) d | 5 mm |
Size | 20 |
Connection | G1/4"-F |
Number of folds | 0 |
Suction cup material | Elastodur ED |
Material hardness [Shore A] | 85 Shore A |
Weight | 14.2 g |
Product family | SAXM |
