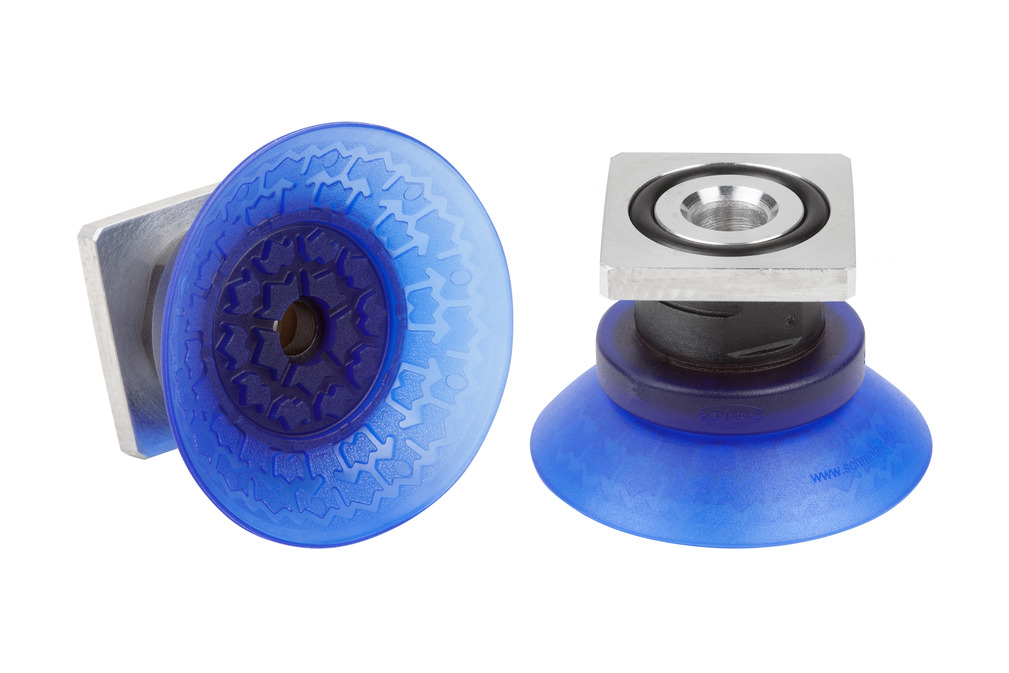

Part no.: 10.01.19.00174

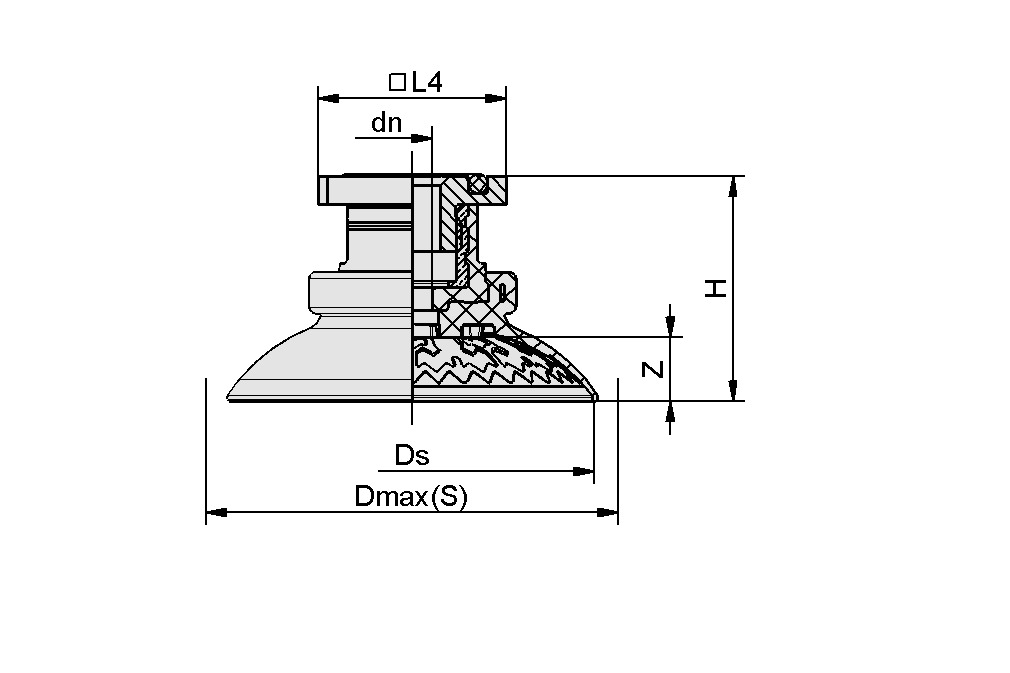

Design Data

Attribute	Value
dn	6.75 mm
Dmax(S)	58.4 mm
Ds	51.5 mm
H	34.3 mm
L4	31.8 mm
SW1	22 mm
Z (Stroke)	8.4 mm

Technical Data

Attribute	Value
Suction force (-600mbar)	109 N
Lateral force	74 N
Lateral force oily surface	110 N
Volume	15.2 cm³
Workpiece radius min. (convex)	25 mm
Size	50
Connection	Rectangular adapter
Number of folds	0
Suction cup material	Elastodur ED
Material hardness [Shore A]	85 Shore A
Weight	39.5 g
Product family	SAX

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
