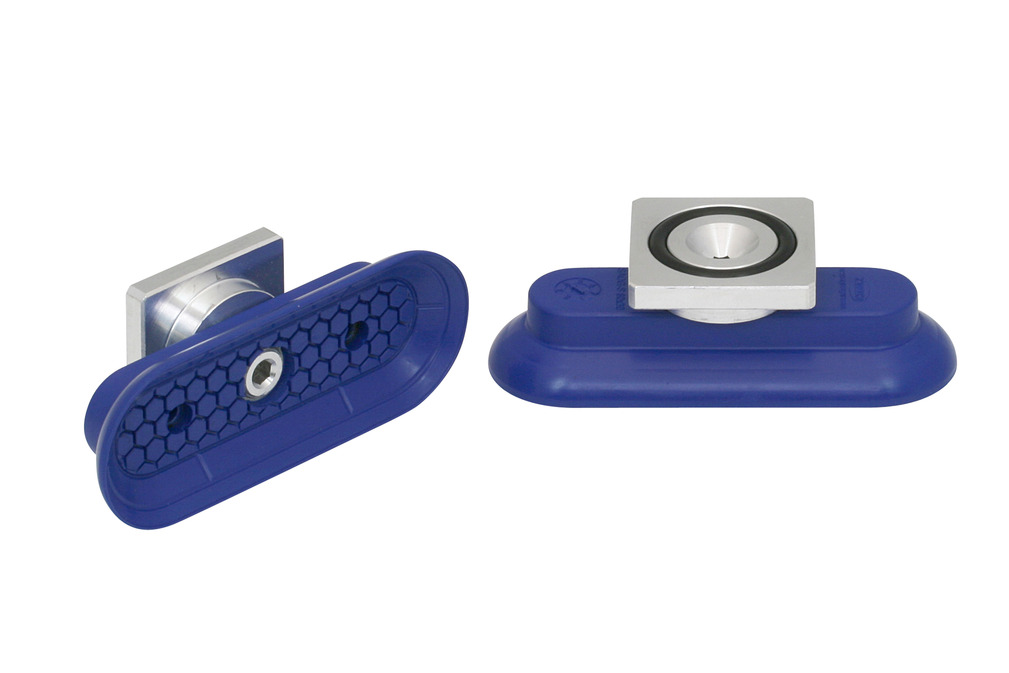

Part no.: 10.01.01.12179
Design Data
Design Data
| Attribute | Value |
|---|---|
| Bmax(S) | 37.5 mm |
| Bs | 30.9 mm |
| dn | 4 mm |
| H | 24.5 mm |
| L4 | 31.8 mm |
| Lmax.(S) | 86.5 mm |
| Ls | 80.9 mm |
| Z (Stroke) | 6 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 105 N |
| Lateral force | 130 N |
| Lateral force oily surface | 91 N |
| Volume | 11 cm³ |
| Workpiece radius min. (convex) | 20 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Dimension (LxW) | 80 x 30 |
| Suction cup material | Nitrile rubber NBR |
| Number of folds | 0 |
| Weight | 36.3 g |
| Product family | SAOG-S |
Documentation
Documentation
Spare parts
O-RING 10x1.5 NBR-70 GLB10.07.08.00129O-ring
| Material | Nitrile rubber NBR |
| Surface | Sliding coating |
| Material hardness [Shore A] | 70 (Shore A) |
| Internal diameter d | 10 (mm) |
O-RING 19x3.2 NBR-7010.07.08.00123O-ring
| Material | Nitrile rubber NBR |
| Material hardness [Shore A] | 70 (Shore A) |
| Internal diameter d | 19 (mm) |
SAOG-S 80x30 NBR-60 G1/8-IG10.01.01.12177Bell suction cup (oval) for very
dynamic handling of smooth and oily
workpieces
| Dimension (LxW) | 80x30 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Aluminum |
| Connection | G1/8-IG |
