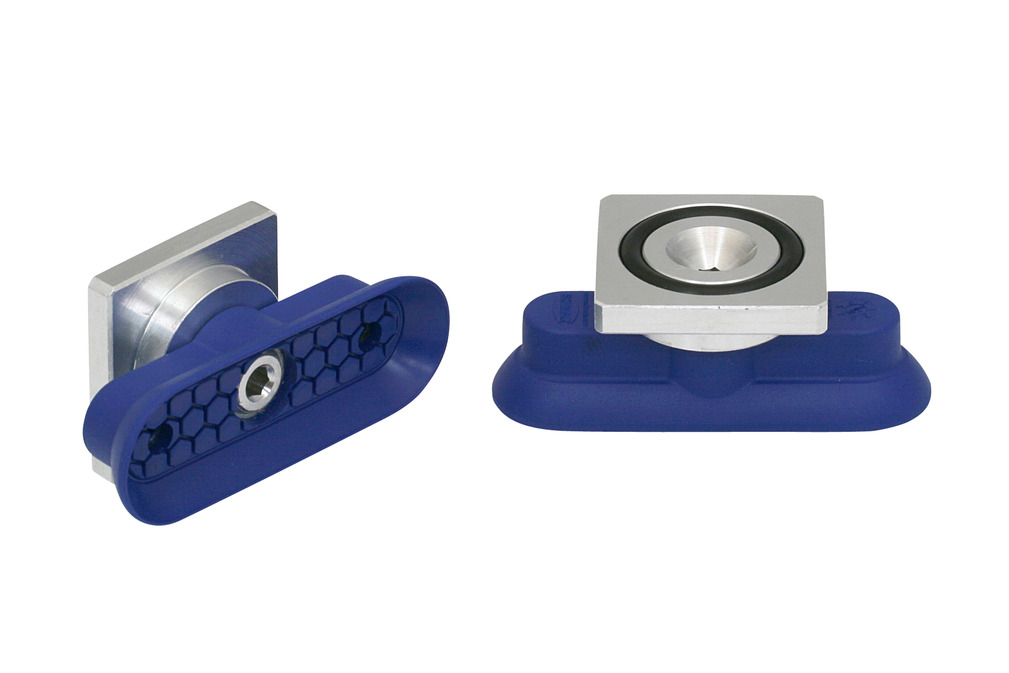

Part no.: 10.01.01.12176

Design Data

Attribute	Value
Bmax(S)	25.8 mm
Bs	20.9 mm
dn	4 mm
H	23.5 mm
L4	31.8 mm
Lmax.(S)	65.8 mm
Ls	60.9 mm
Z (Stroke)	5 mm

Technical Data

Attribute	Value
Suction force (-600mbar)	56 N
Lateral force	45 N
Lateral force oily surface	30 N
Volume	4 cm³
Workpiece radius min. (convex)	12.5 mm
Hose inner diameter (recom.) d	4 mm
Dimension (LxW)	60 x 20
Suction cup material	Nitrile rubber NBR
Number of folds	0
Weight	27.6 g
Product family	SAOG-S

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
