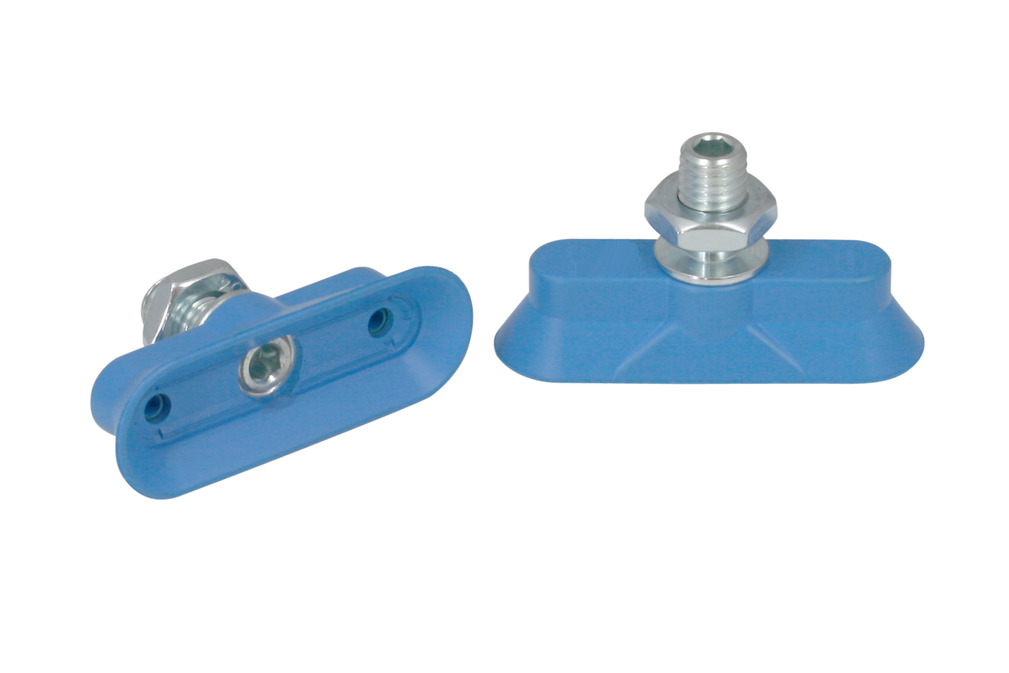

Part no.: 10.01.01.11760

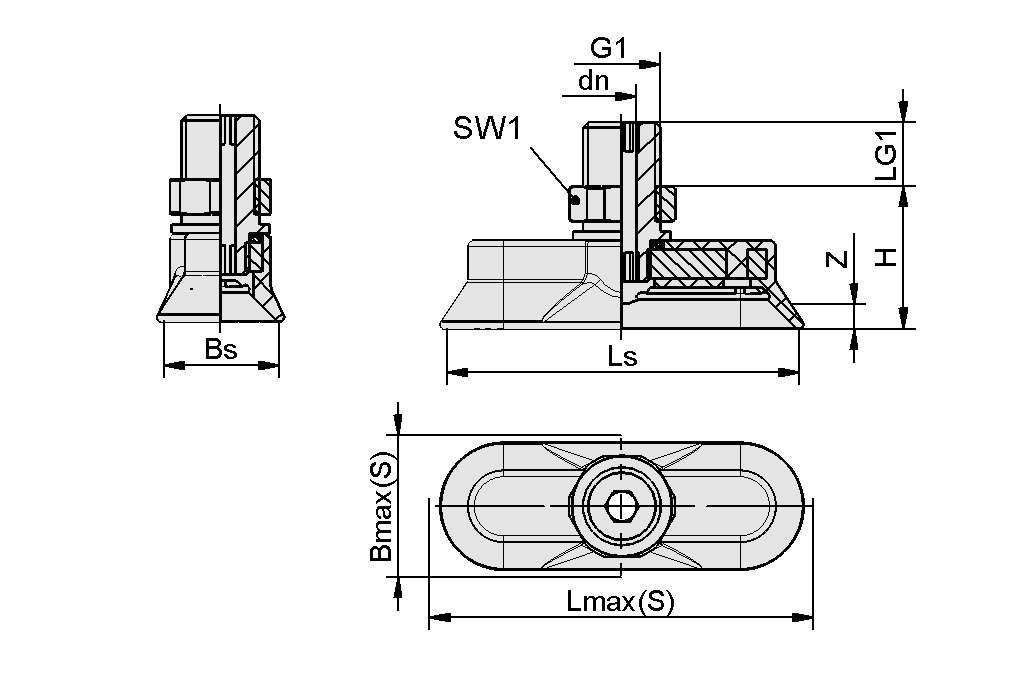

Design Data
Design Data
| Attribute | Value |
|---|---|
| Bmax(S) | 26 mm |
| Bs | 20 mm |
| dn | 4 mm |
| G1 | M10-M |
| H | 21.5 mm |
| LG1 | 10 mm |
| Lmax.(S) | 66 mm |
| Ls | 60 mm |
| SW1 | 16 mm |
| Z (Stroke) | 4.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 56 N |
| Lateral force | 35 N |
| Lateral force oily surface | 10 N |
| Volume | 4.86 cm³ |
| Workpiece radius min. (convex) | 12.5 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Dimension (LxW) | 60 x 20 |
| Suction cup material | Nitrile rubber NBR |
| Weight | 27.4 g |
| Number of folds | 0 |
| Product family | SAOG |
