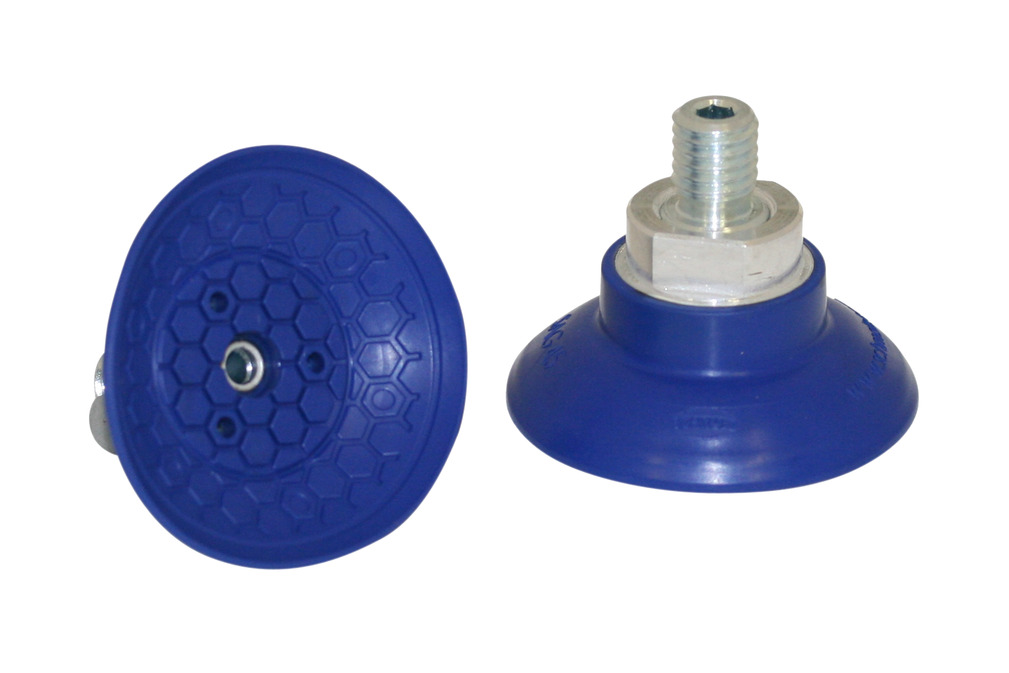

SAG 45 NBR-60 M10-AG
Part no.: 10.01.01.12296
Bell suction cup (round) for best adaptation to strongly curved surfaces
| Size | 45 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
| Nipple material | Steel |
| Connection | M10-AG |

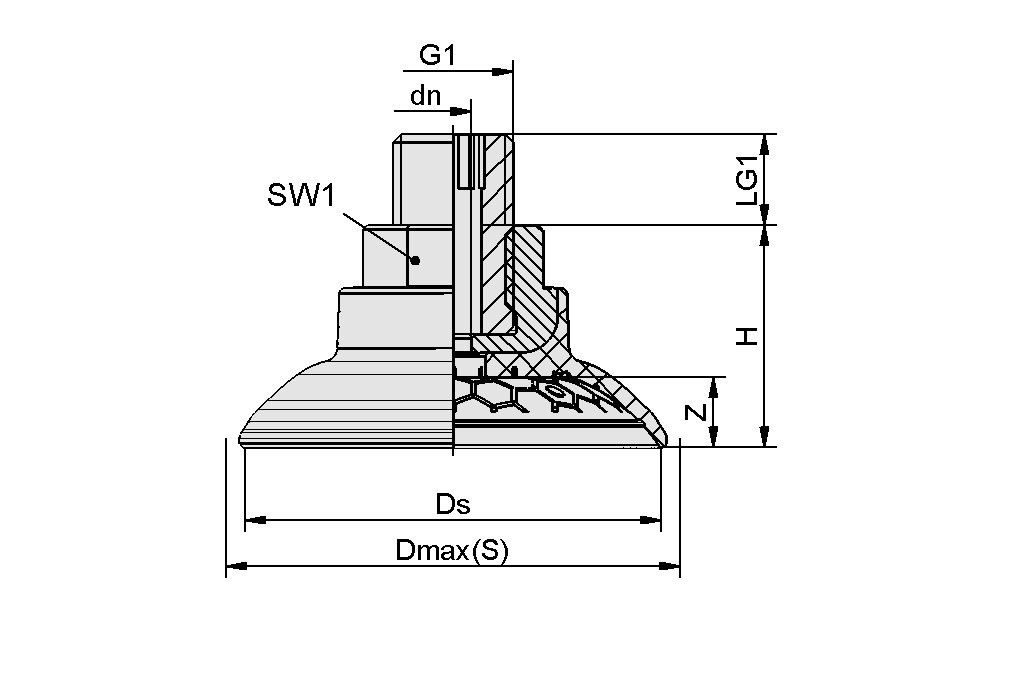

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 4 mm |
| Dmax(S) | 51.5 mm |
| Ds | 47 mm |
| G1 | M10-M |
| H | 36.5 mm |
| LG1 | 12 mm |
| SW1 | 17 mm |
| Z (Stroke) | 7.8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 68 N |
| Size | 45 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 Shore A |
| Number of folds | 0 |
| Weight | 27.8 g |
| Product family | SAG |
