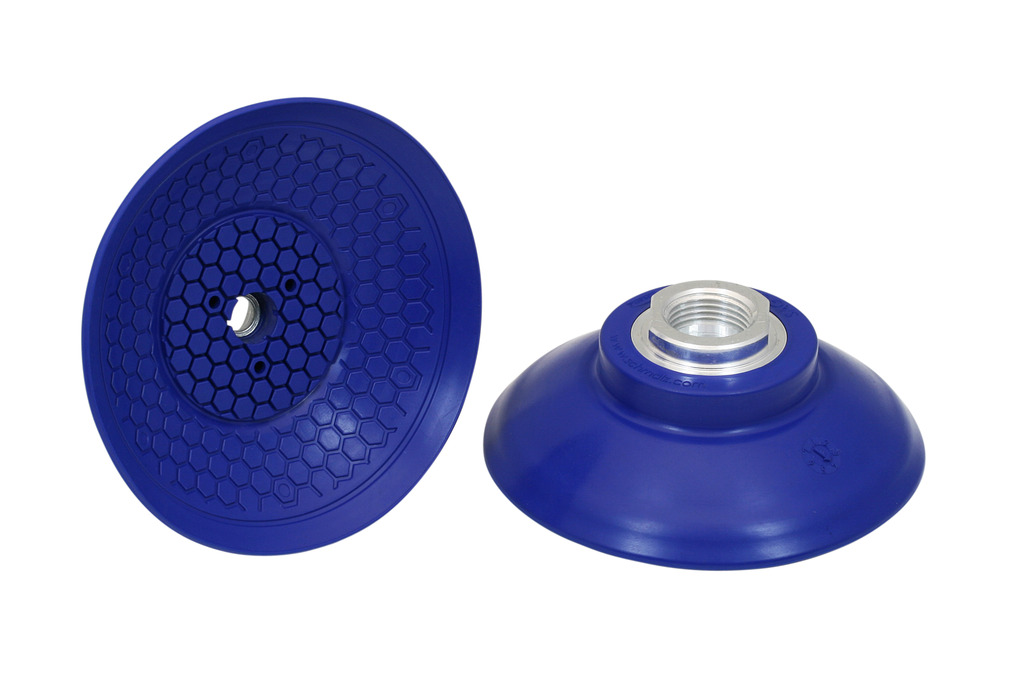

Part no.: 10.01.01.12170
Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 6 mm |
| Dmax(S) | 90.7 mm |
| Ds | 83 mm |
| G1 | G3/8"-F |
| H | 35 mm |
| LG1 | 15 mm |
| SW1 | 22 mm |
| Z (Stroke) | 12.8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 217 N |
| Lateral force | 284 N |
| Lateral force oily surface | 167 N |
| Volume | 44 cm³ |
| Workpiece radius min. (convex) | 70 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Size | 80 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 Shore A |
| Number of folds | 0 |
| Weight | 45.2 g |
| Product family | SAG |
