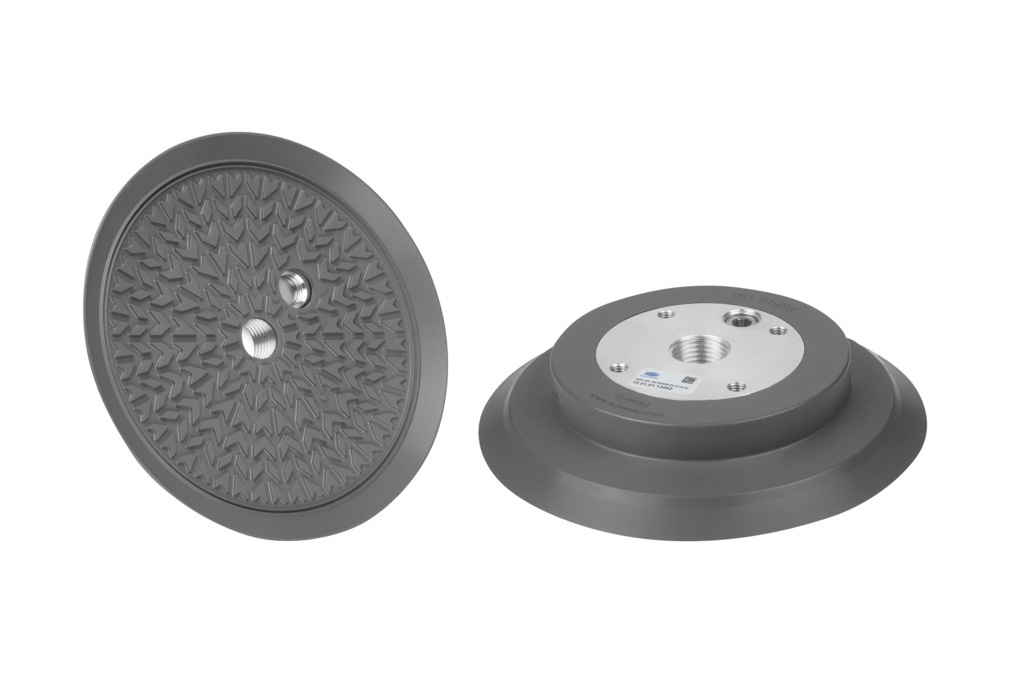

Part no.: 10.01.01.13492

Product information

Design Data

Design image

Attribute	Value
d2	126 mm
d3	70 mm
Dmax(S)	165 mm
Ds	148.5 mm
G1	G1/2"-F
G2	G1/4"-F
H	25.9 mm
L2	26.5 mm
LG1	14 mm
LG2	14 mm
Z (Stroke)	7.5 mm
Dmk	58.3 mm
G4	M6-F
LG4	10.5 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	1,060 N
Suction force d2	730 N
Volume	119 cm³
Workpiece radius min. (convex)	700 mm
Hose inner diameter (recom.) d	9 mm
Size	150
Number of folds	0
Suction cup material	EPDM
Material hardness [Shore A]	55 Shore A
Weight	320 g
Product family	SGF

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Documentation

Spare parts

VRS-S G1/4-AG

VRS-S G1/4-AG 10.08.06.00048 Sealing screw without collar

Thread G1	G1/4"-M
Material	Brass
Surface	nickel plated

DR-SGF-HS 150 EPDM-55

DR-SGF-HS 150 EPDM-55 10.01.01.13491 Rubber Seal for SGF suction cup

Size	150
Suction cup material	EPDM
Material hardness [Shore A]	55 (Shore A)
Height H	25.9 (mm)

Accessories

SIEB 27x1 MS-A2 100 0.1/0.06

SIEB 27x1 MS-A2 100 0.1/0.06 10.07.01.00110 Screen protects the vacuum system from contamination

TV G1/4-AG 13

TV G1/4-AG 13 10.05.10.00061 Touch valve for deactivation of unused suction cups or vacuum blocks

Thread G1	G1/4"-M
Thread G2	G1/8"-F
Spring stroke Z	13 (mm)

PC 150

PC 150 10.01.01.13087 Coating protects against environ- mental influences during downtimes

Size

150

SU 160

SU 160 10.01.01.12438 Cover for suction cup

Size	160
Clamping range [mm]	150.0 ... 180.0 mm
Temperature resistance	80 (°C)

FLK-HD G3/8-AG

FLK-HD G3/8-AG 10.07.06.00235 Flexible, reinforced suction cup mounting FLK-HD for adaption to sloping surfaces

Thread G1	G3/8"-M
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

FLK-HD G1/4-IG

FLK-HD G1/4-IG 10.07.06.00241 Flexible, reinforced suction cup mounting FLK-HD for adaption to sloping surfaces

Thread G1	G1/4"-F
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

FLK-HD G1/2-IG

FLK-HD G1/2-IG 10.07.06.00242 Flexible, reinforced suction cup mounting FLK-HD for adaption to sloping surfaces

Thread G1	G1/2"-F
Thread G2	M6-M
Operating temperature	-5 ... 130 °C
