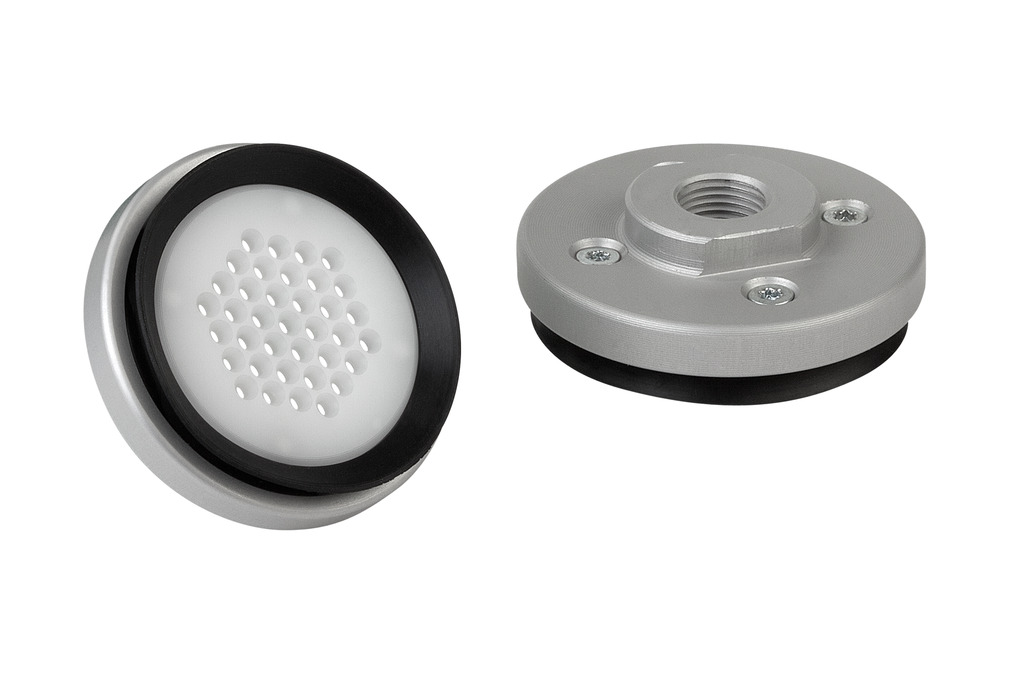

Part no.: 10.01.01.13104
Design Data
Design Data
| Attribute | Value |
|---|---|
| Dk | 42 mm |
| Ds | 39 mm |
| G1 | G1/8"-F |
| H | 20.5 mm |
| LG1 | 9.5 mm |
| SW1 | 17 mm |
| Z (Stroke) | 2 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 70 N |
| Volume | 4.7 cm³ |
| Hose inner diameter (recom.) d | 4 mm |
| Connection | G1/8"-F |
| Connection | G1/8-IG |
| Suction cup material | Polyoxymethylene perbunan POM-NBR |
| Weight | 28 g |
| Product family | SPL |
