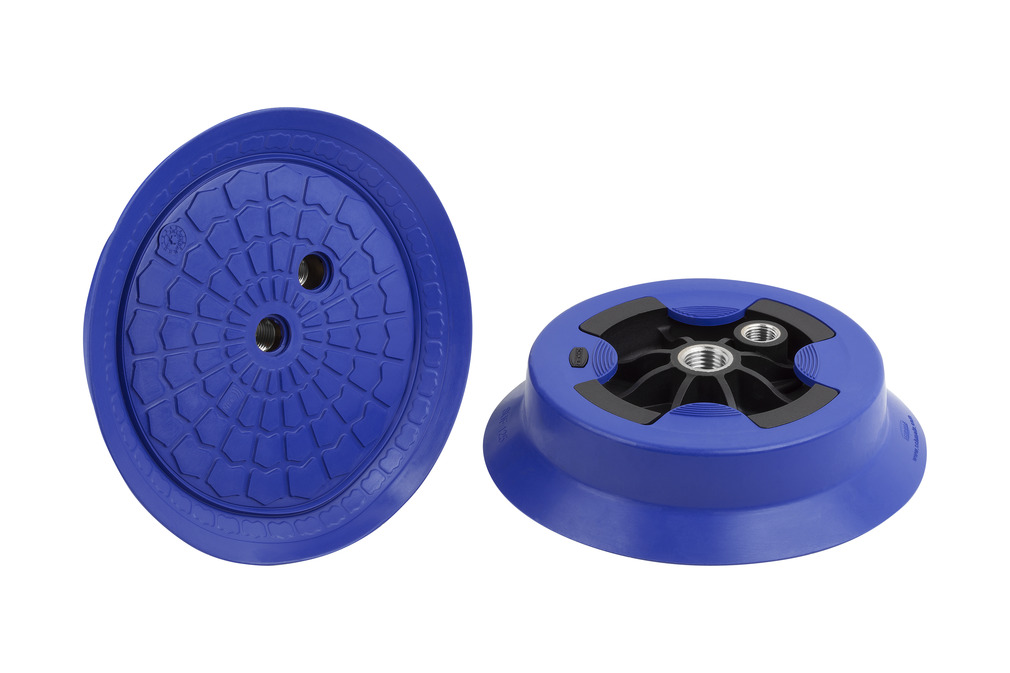

DR-SUF 125 NBR-6010.01.01.14319Sealing ring for suction plate SUF
| Size | 125 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 (Shore A) |
Part no.: 10.01.01.14521
Design Data
Design Data
| Attribute | Value |
|---|---|
| d2 | 98 mm |
| Dmax(S) | 132 mm |
| Ds | 125 mm |
| G1 | G1/4"-F |
| G2 | G1/8"-F |
| H | 29 mm |
| L2 | 22 mm |
| LG1 | 11.8 mm |
| LG2 | 9.5 mm |
| Z (Stroke) | 8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Product family | SUF |
| Size | 125 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 Shore A |
| Volume | 96 cm³ |
| Suction force d2 | 450 N |
| Suction force (-600mbar) | 730 N |
| Workpiece radius min. (convex) | 250 mm |
| Hose inner diameter (recom.) d | 9 mm |
| Weight | 193 g |
Documentation
Documentation
Spare parts
Accessories
SIEB 15x0.8 MS-A2 0.103/0.0710.07.01.00211Screen protects the vacuum system
from contamination
| Outside diameter D | 15 (mm) |
| Length L | 0.8 (mm) |
| Material | Brass / stainless steel |
| Mesh size | 0.103 (mm) |
| Wire diameter | 0.06 (mm) |
TV G1/8-AG 1010.05.10.00088Touch valve for deactivation of
unused suction cups or
vacuum blocks
| Thread G1 | G1/8"-M |
| Spring stroke Z | 10 (mm) |
